Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: collateralAllocation
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ProposedCollateralAllocation
Containing Schema: fpml-reporting-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Allocation details

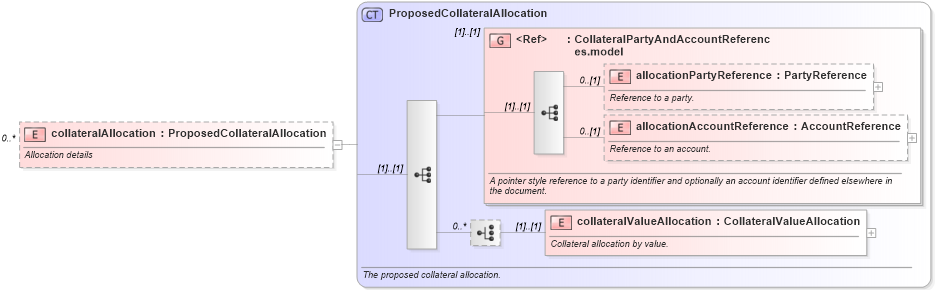

Collapse XSD Schema Diagram:
Drilldown into collateralValueAllocation in schema fpml-shared-5-10_xsd4 Drilldown into allocationAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into allocationPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into CollateralPartyAndAccountReferences.model in schema fpml-shared-5-10_xsd4 Drilldown into ProposedCollateralAllocation in schema fpml-shared-5-10_xsd4XSD Diagram of collateralAllocation in schema fpml-reporting-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="collateralAllocation" type="ProposedCollateralAllocation" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allocation details</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
allocationPartyReference nsE:allocationPartyReference 0 (1)
allocationAccountReference nsE:allocationAccountReference 0 (1)
collateralValueAllocation nsE:collateralValueAllocation (1) (1)
<xs:group> nsE:CollateralPartyAndAccountReferences.model (1) (1)
Collapse Derivation Tree:
Documentation for Financial products Markup Language (FpML®)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
