Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commission
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Commission
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
This optional component specifies the commission to be charged for executing the hedge transactions.

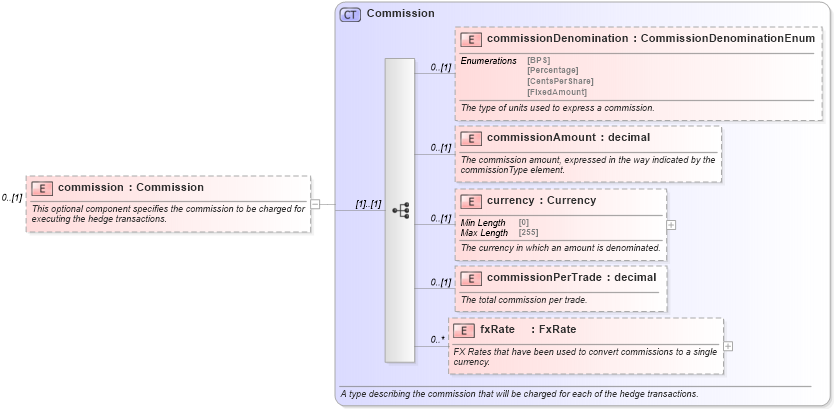

Collapse XSD Schema Diagram:
Drilldown into fxRate in schema fpml-asset-5-10_xsd5 Drilldown into commissionPerTrade in schema fpml-asset-5-10_xsd5 Drilldown into currency in schema fpml-asset-5-10_xsd5 Drilldown into commissionAmount in schema fpml-asset-5-10_xsd5 Drilldown into commissionDenomination in schema fpml-asset-5-10_xsd5 Drilldown into Commission in schema fpml-asset-5-10_xsd5XSD Diagram of commission in schema fpml-asset-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commission" type="Commission" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This optional component specifies the commission to be charged for executing the hedge transactions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commissionDenomination nsF:commissionDenomination 0 (1)
commissionAmount nsF:commissionAmount 0 (1)
currency nsF:currency 0 (1)
commissionPerTrade nsF:commissionPerTrade 0 (1)
fxRate nsF:fxRate 0 unbounded
Collapse Derivation Tree:
