Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodity
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Commodity
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
Identifies the underlying asset when it is a listed commodity.

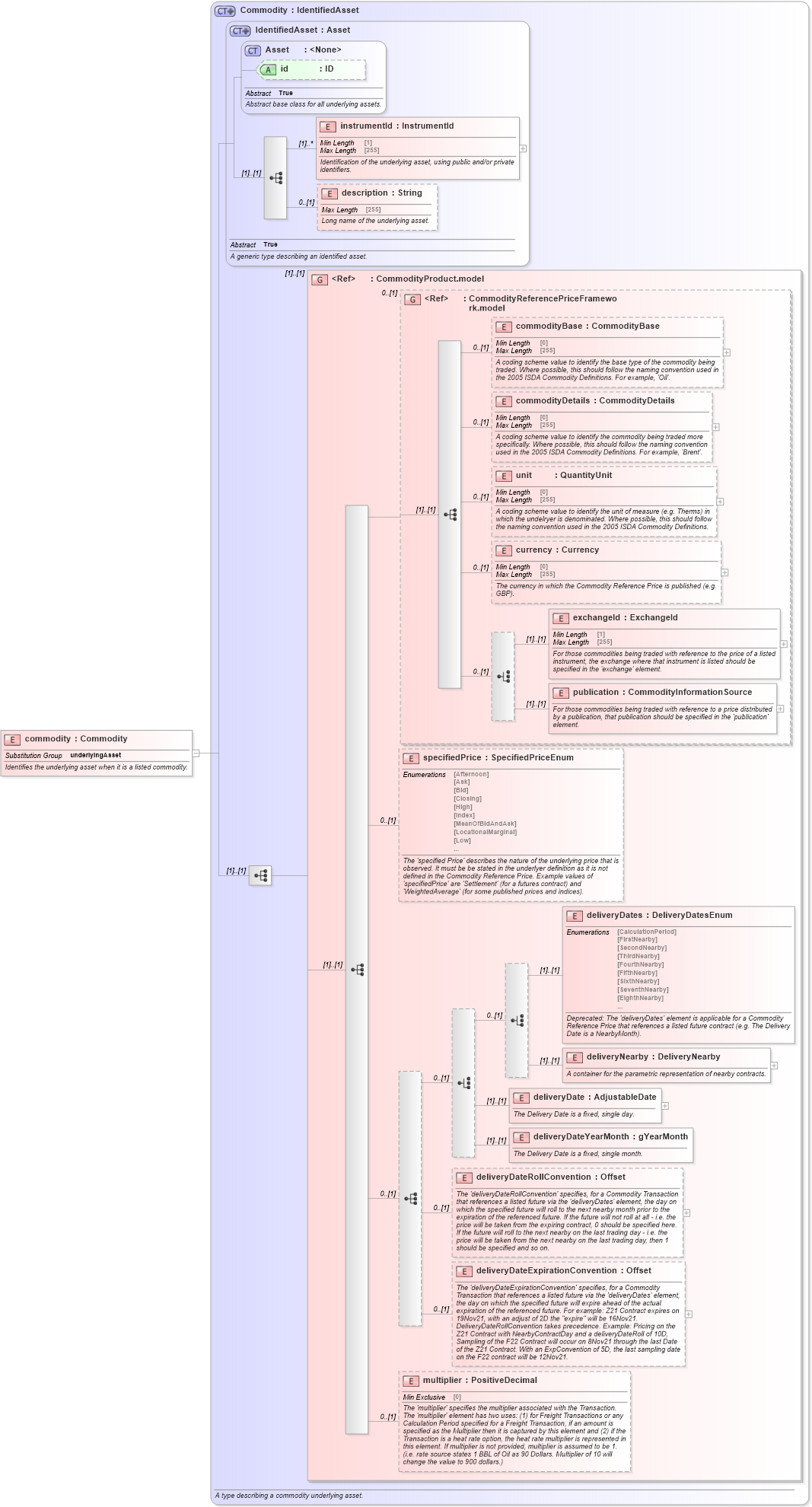

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-asset-5-10_xsd3 Drilldown into deliveryDateExpirationConvention in schema fpml-asset-5-10_xsd3 Drilldown into deliveryDateRollConvention in schema fpml-asset-5-10_xsd3 Drilldown into deliveryDateYearMonth in schema fpml-asset-5-10_xsd3 Drilldown into deliveryDate in schema fpml-asset-5-10_xsd3 Drilldown into deliveryNearby in schema fpml-asset-5-10_xsd3 Drilldown into deliveryDates in schema fpml-asset-5-10_xsd3 Drilldown into specifiedPrice in schema fpml-asset-5-10_xsd3 Drilldown into publication in schema fpml-asset-5-10_xsd3 Drilldown into exchangeId in schema fpml-asset-5-10_xsd3 Drilldown into currency in schema fpml-asset-5-10_xsd3 Drilldown into unit in schema fpml-asset-5-10_xsd3 Drilldown into commodityDetails in schema fpml-asset-5-10_xsd3 Drilldown into commodityBase in schema fpml-asset-5-10_xsd3 Drilldown into CommodityReferencePriceFramework.model in schema fpml-asset-5-10_xsd3 Drilldown into CommodityProduct.model in schema fpml-asset-5-10_xsd3 Drilldown into description in schema fpml-asset-5-10_xsd3 Drilldown into instrumentId in schema fpml-asset-5-10_xsd3 Drilldown into id in schema fpml-asset-5-10_xsd3 Drilldown into Asset in schema fpml-asset-5-10_xsd3 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd3 Drilldown into Commodity in schema fpml-asset-5-10_xsd3XSD Diagram of commodity in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodity" type="Commodity" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifies the underlying asset when it is a listed commodity.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsD:instrumentId (1) unbounded
description nsD:description 0 (1)
commodityBase nsD:commodityBase 0 (1)
commodityDetails nsD:commodityDetails 0 (1)
unit nsD:unit 0 (1)
currency nsD:currency 0 (1)
exchangeId nsD:exchangeId (1) (1)
publication nsD:publication (1) (1)
specifiedPrice nsD:specifiedPrice 0 (1)
deliveryDates nsD:deliveryDates (1) (1)
deliveryNearby nsD:deliveryNearby (1) (1)
deliveryDate nsD:deliveryDate (1) (1)
deliveryDateYearMonth nsD:deliveryDateYearMonth (1) (1)
deliveryDateRollConvention nsD:deliveryDateRollConvention 0 (1)
deliveryDateExpirationConvention nsD:deliveryDateExpirationConvention 0 (1)
multiplier nsD:multiplier 0 (1)
<xs:group> nsD:CommodityProduct.model (1) (1)
<xs:group> nsD:CommodityReferencePriceFramework.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:underlyingAsset
