Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodity
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Commodity
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Specifies the underlying component. At the time of the initial schema design, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.

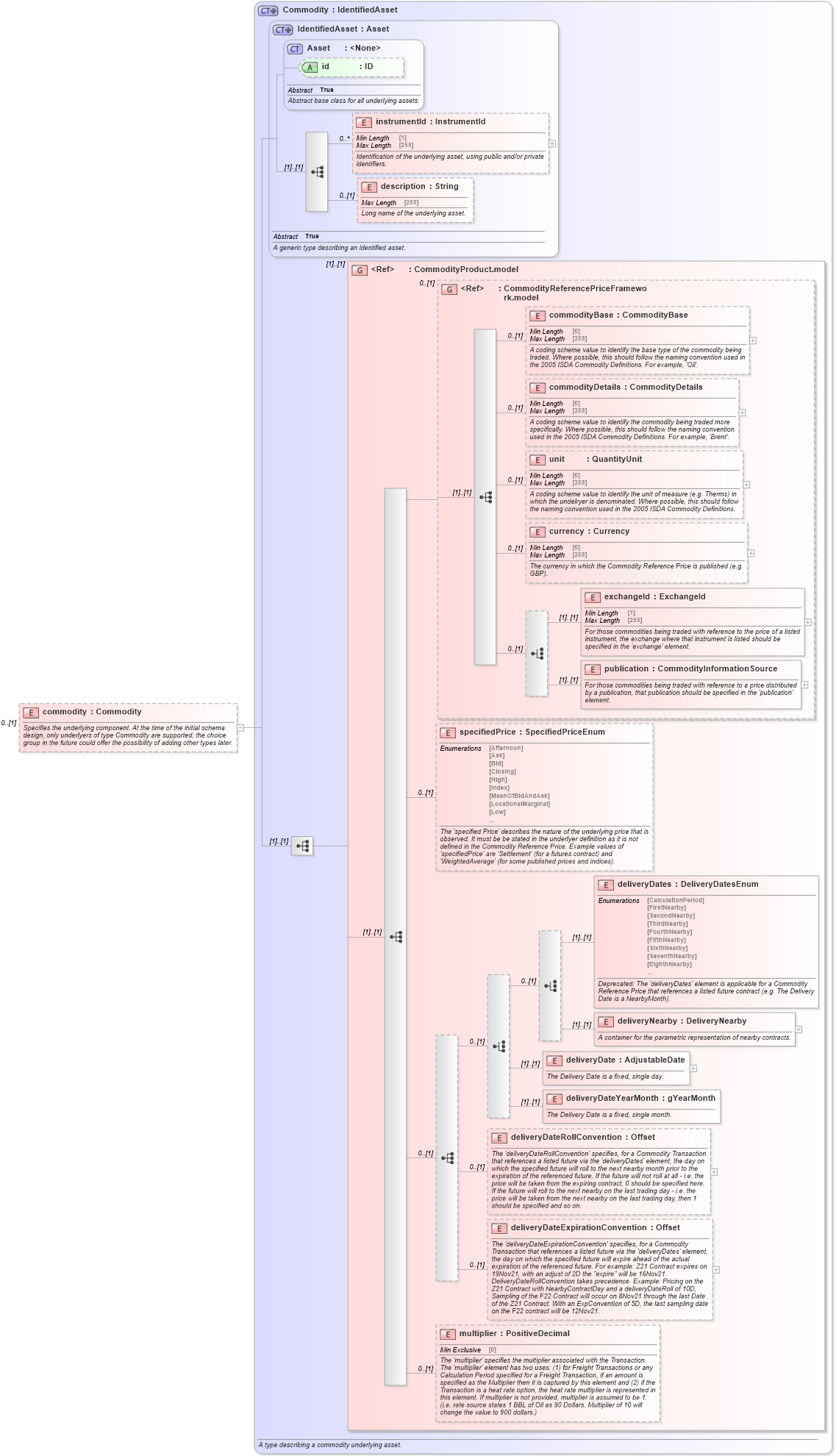

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-asset-5-10_xsd4 Drilldown into deliveryDateExpirationConvention in schema fpml-asset-5-10_xsd4 Drilldown into deliveryDateRollConvention in schema fpml-asset-5-10_xsd4 Drilldown into deliveryDateYearMonth in schema fpml-asset-5-10_xsd4 Drilldown into deliveryDate in schema fpml-asset-5-10_xsd4 Drilldown into deliveryNearby in schema fpml-asset-5-10_xsd4 Drilldown into deliveryDates in schema fpml-asset-5-10_xsd4 Drilldown into specifiedPrice in schema fpml-asset-5-10_xsd4 Drilldown into publication in schema fpml-asset-5-10_xsd4 Drilldown into exchangeId in schema fpml-asset-5-10_xsd4 Drilldown into currency in schema fpml-asset-5-10_xsd4 Drilldown into unit in schema fpml-asset-5-10_xsd4 Drilldown into commodityDetails in schema fpml-asset-5-10_xsd4 Drilldown into commodityBase in schema fpml-asset-5-10_xsd4 Drilldown into CommodityReferencePriceFramework.model in schema fpml-asset-5-10_xsd4 Drilldown into CommodityProduct.model in schema fpml-asset-5-10_xsd4 Drilldown into description in schema fpml-asset-5-10_xsd4 Drilldown into instrumentId in schema fpml-asset-5-10_xsd4 Drilldown into id in schema fpml-asset-5-10_xsd4 Drilldown into Asset in schema fpml-asset-5-10_xsd4 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd4 Drilldown into Commodity in schema fpml-asset-5-10_xsd4XSD Diagram of commodity in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodity" type="Commodity" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the underlying component. At the time of the initial schema design, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsE:instrumentId 0 unbounded
description nsE:description 0 (1)
commodityBase nsE:commodityBase 0 (1)
commodityDetails nsE:commodityDetails 0 (1)
unit nsE:unit 0 (1)
currency nsE:currency 0 (1)
exchangeId nsE:exchangeId (1) (1)
publication nsE:publication (1) (1)
specifiedPrice nsE:specifiedPrice 0 (1)
deliveryDates nsE:deliveryDates (1) (1)
deliveryNearby nsE:deliveryNearby (1) (1)
deliveryDate nsE:deliveryDate (1) (1)
deliveryDateYearMonth nsE:deliveryDateYearMonth (1) (1)
deliveryDateRollConvention nsE:deliveryDateRollConvention 0 (1)
deliveryDateExpirationConvention nsE:deliveryDateExpirationConvention 0 (1)
multiplier nsE:multiplier 0 (1)
<xs:group> nsE:CommodityProduct.model (1) (1)
<xs:group> nsE:CommodityReferencePriceFramework.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
