Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodity
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Commodity
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Specifies the underlying instrument. Only underlyers of type Commodity are supported.

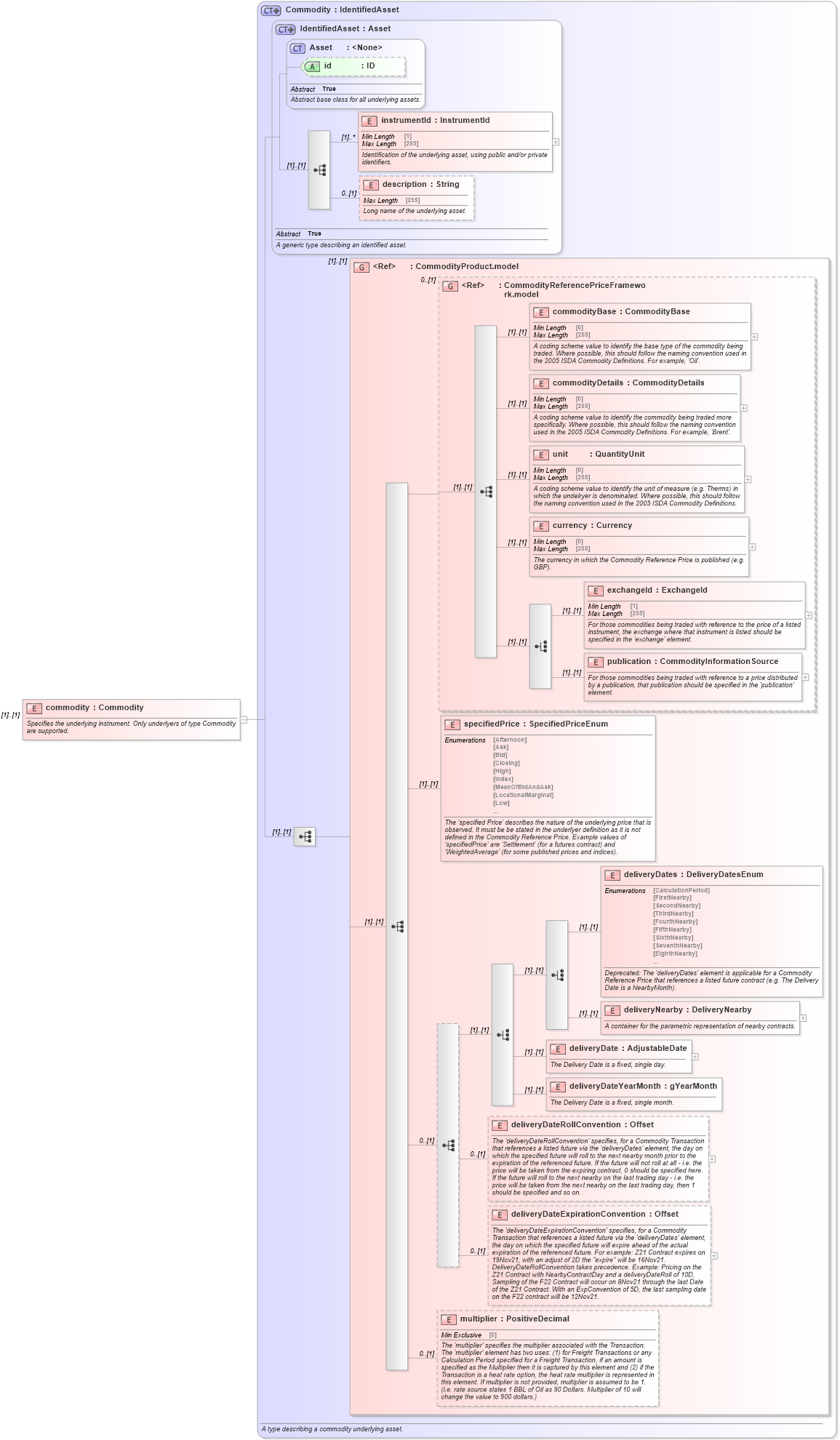

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-asset-5-10_xsd Drilldown into deliveryDateExpirationConvention in schema fpml-asset-5-10_xsd Drilldown into deliveryDateRollConvention in schema fpml-asset-5-10_xsd Drilldown into deliveryDateYearMonth in schema fpml-asset-5-10_xsd Drilldown into deliveryDate in schema fpml-asset-5-10_xsd Drilldown into deliveryNearby in schema fpml-asset-5-10_xsd Drilldown into deliveryDates in schema fpml-asset-5-10_xsd Drilldown into specifiedPrice in schema fpml-asset-5-10_xsd Drilldown into publication in schema fpml-asset-5-10_xsd Drilldown into exchangeId in schema fpml-asset-5-10_xsd Drilldown into currency in schema fpml-asset-5-10_xsd Drilldown into unit in schema fpml-asset-5-10_xsd Drilldown into commodityDetails in schema fpml-asset-5-10_xsd Drilldown into commodityBase in schema fpml-asset-5-10_xsd Drilldown into CommodityReferencePriceFramework.model in schema fpml-asset-5-10_xsd Drilldown into CommodityProduct.model in schema fpml-asset-5-10_xsd Drilldown into description in schema fpml-asset-5-10_xsd Drilldown into instrumentId in schema fpml-asset-5-10_xsd Drilldown into id in schema fpml-asset-5-10_xsd Drilldown into Asset in schema fpml-asset-5-10_xsd Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd Drilldown into Commodity in schema fpml-asset-5-10_xsdXSD Diagram of commodity in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodity" type="Commodity">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the underlying instrument. Only underlyers of type Commodity are supported.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
commodityBase nsA:commodityBase (1) (1)
commodityDetails nsA:commodityDetails (1) (1)
unit nsA:unit (1) (1)
currency nsA:currency (1) (1)
exchangeId nsA:exchangeId (1) (1)
publication nsA:publication (1) (1)
specifiedPrice nsA:specifiedPrice (1) (1)
deliveryDates nsA:deliveryDates (1) (1)
deliveryNearby nsA:deliveryNearby (1) (1)
deliveryDate nsA:deliveryDate (1) (1)
deliveryDateYearMonth nsA:deliveryDateYearMonth (1) (1)
deliveryDateRollConvention nsA:deliveryDateRollConvention 0 (1)
deliveryDateExpirationConvention nsA:deliveryDateExpirationConvention 0 (1)
multiplier nsA:multiplier 0 (1)
<xs:group> nsA:CommodityProduct.model (1) (1)
<xs:group> nsA:CommodityReferencePriceFramework.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
