Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Commodity
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsB:IdentifiedAsset
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
A type describing a commodity underlying asset.

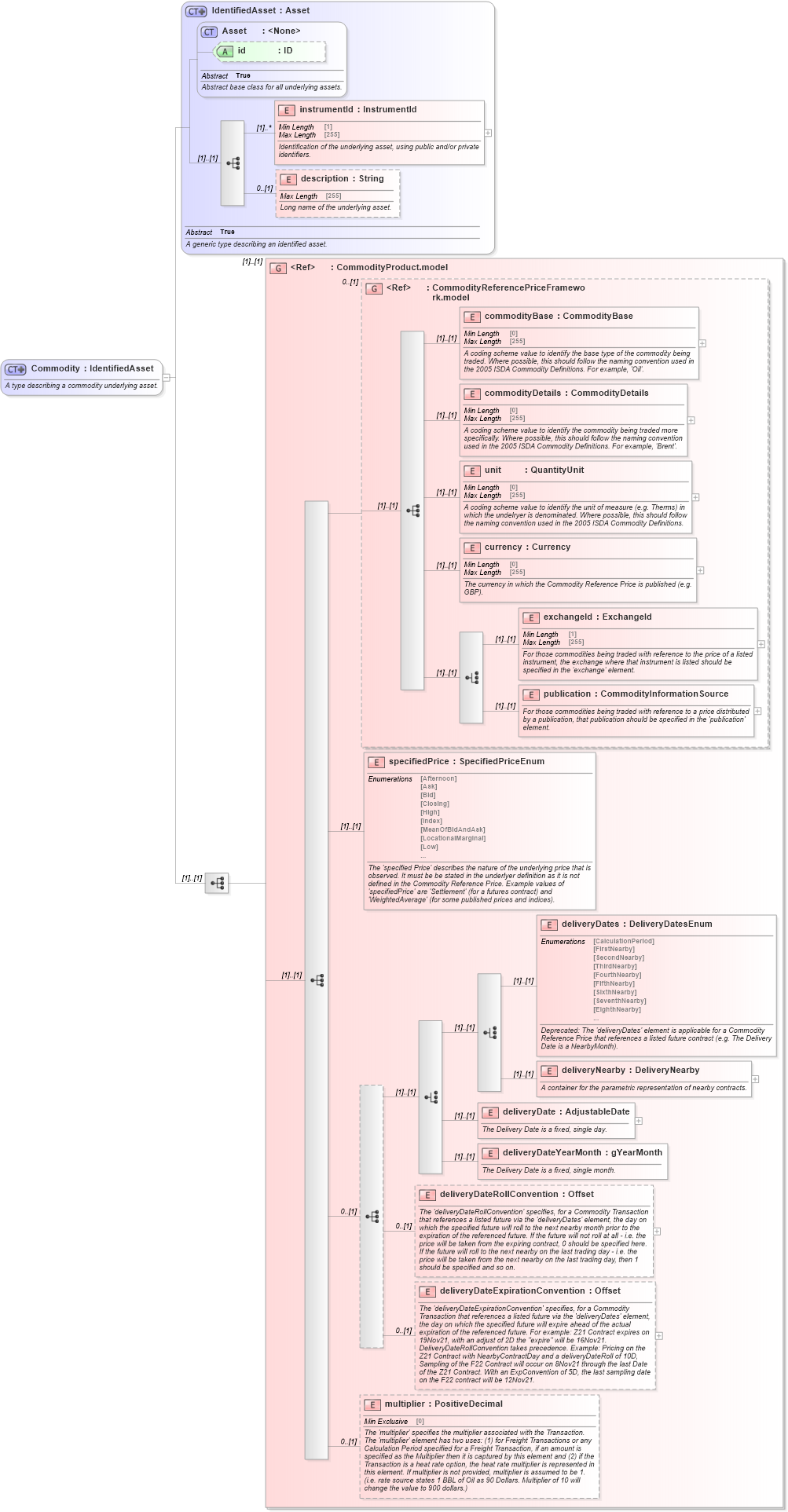

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-asset-5-10_xsd1 Drilldown into deliveryDateExpirationConvention in schema fpml-asset-5-10_xsd1 Drilldown into deliveryDateRollConvention in schema fpml-asset-5-10_xsd1 Drilldown into deliveryDateYearMonth in schema fpml-asset-5-10_xsd1 Drilldown into deliveryDate in schema fpml-asset-5-10_xsd1 Drilldown into deliveryNearby in schema fpml-asset-5-10_xsd1 Drilldown into deliveryDates in schema fpml-asset-5-10_xsd1 Drilldown into specifiedPrice in schema fpml-asset-5-10_xsd1 Drilldown into publication in schema fpml-asset-5-10_xsd1 Drilldown into exchangeId in schema fpml-asset-5-10_xsd1 Drilldown into currency in schema fpml-asset-5-10_xsd1 Drilldown into unit in schema fpml-asset-5-10_xsd1 Drilldown into commodityDetails in schema fpml-asset-5-10_xsd1 Drilldown into commodityBase in schema fpml-asset-5-10_xsd1 Drilldown into CommodityReferencePriceFramework.model in schema fpml-asset-5-10_xsd1 Drilldown into CommodityProduct.model in schema fpml-asset-5-10_xsd1 Drilldown into description in schema fpml-asset-5-10_xsd1 Drilldown into instrumentId in schema fpml-asset-5-10_xsd1 Drilldown into id in schema fpml-asset-5-10_xsd1 Drilldown into Asset in schema fpml-asset-5-10_xsd1 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd1XSD Diagram of Commodity in schema fpml-asset-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Commodity">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type describing a commodity underlying asset.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="IdentifiedAsset">
            <xsd:sequence>
                <xsd:group ref="CommodityProduct.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsB:instrumentId (1) unbounded
description nsB:description 0 (1)
commodityBase nsB:commodityBase (1) (1)
commodityDetails nsB:commodityDetails (1) (1)
unit nsB:unit (1) (1)
currency nsB:currency (1) (1)
exchangeId nsB:exchangeId (1) (1)
publication nsB:publication (1) (1)
specifiedPrice nsB:specifiedPrice (1) (1)
deliveryDates nsB:deliveryDates (1) (1)
deliveryNearby nsB:deliveryNearby (1) (1)
deliveryDate nsB:deliveryDate (1) (1)
deliveryDateYearMonth nsB:deliveryDateYearMonth (1) (1)
deliveryDateRollConvention nsB:deliveryDateRollConvention 0 (1)
deliveryDateExpirationConvention nsB:deliveryDateExpirationConvention 0 (1)
multiplier nsB:multiplier 0 (1)
<xs:group> nsB:CommodityProduct.model (1) (1)
<xs:group> nsB:CommodityReferencePriceFramework.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:commodity
