Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodityPerformanceSwapLeg
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CommodityPerformanceSwapLeg
Containing Schema: fpml-com-5-10.xsd
Abstract True
Documentation:
A placeholder within 'commodityPerformanceSwap' structure for the actual commodity swap legs (e.g. 'commodityReturnLeg' and 'commodityInterestLeg').

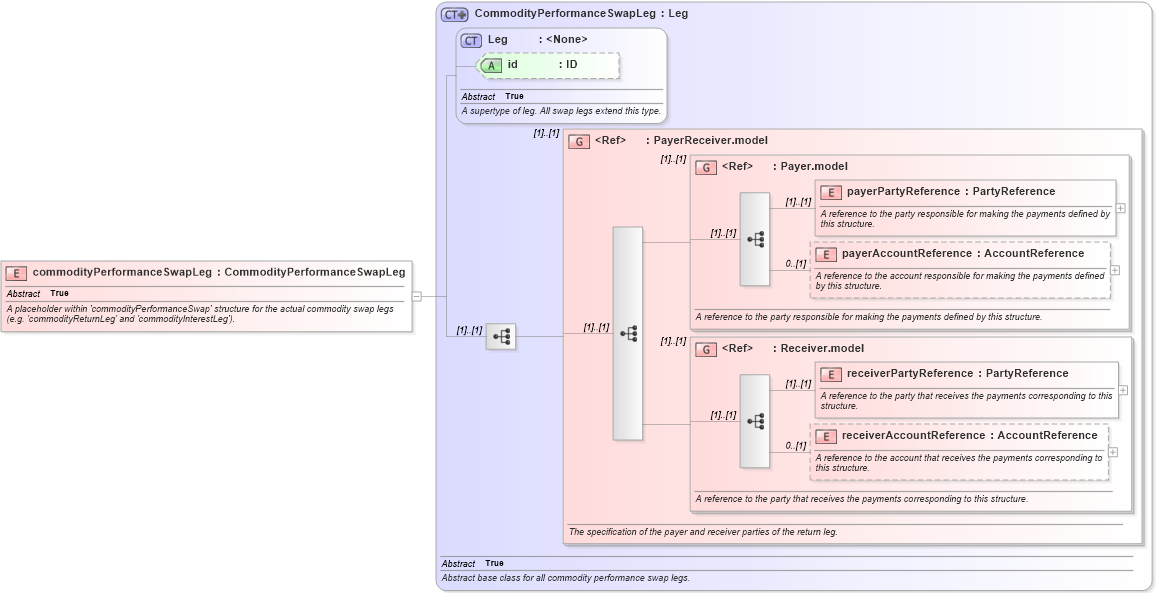

Collapse XSD Schema Diagram:
Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd Drilldown into Receiver.model in schema fpml-shared-5-10_xsd Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd Drilldown into Payer.model in schema fpml-shared-5-10_xsd Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Leg in schema fpml-shared-5-10_xsd Drilldown into CommodityPerformanceSwapLeg in schema fpml-com-5-10_xsdXSD Diagram of commodityPerformanceSwapLeg in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodityPerformanceSwapLeg" type="CommodityPerformanceSwapLeg" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A placeholder within 'commodityPerformanceSwap' structure for the actual commodity swap legs (e.g. 'commodityReturnLeg' and 'commodityInterestLeg').</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference (1) (1)
payerAccountReference nsA:payerAccountReference 0 (1)
receiverPartyReference nsA:receiverPartyReference (1) (1)
receiverAccountReference nsA:receiverAccountReference 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
<xs:group> nsA:Payer.model (1) (1)
<xs:group> nsA:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
