Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commodityPerformanceSwapLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommodityPerformanceSwapLeg
Containing Schema: fpml-com-5-10.xsd
Abstract True
Documentation:
A placeholder within 'commodityPerformanceSwap' structure for the actual commodity swap legs (e.g. 'commodityReturnLeg' and 'commodityInterestLeg').

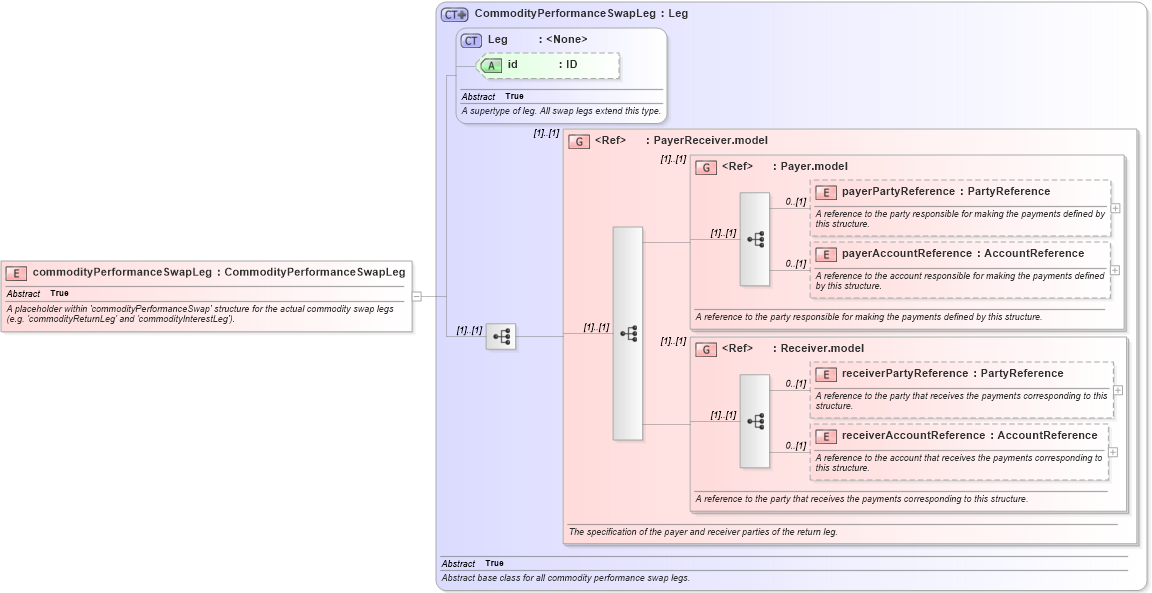

Collapse XSD Schema Diagram:
Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Leg in schema fpml-shared-5-10_xsd4 Drilldown into CommodityPerformanceSwapLeg in schema fpml-com-5-10_xsd2XSD Diagram of commodityPerformanceSwapLeg in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commodityPerformanceSwapLeg" type="CommodityPerformanceSwapLeg" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A placeholder within 'commodityPerformanceSwap' structure for the actual commodity swap legs (e.g. 'commodityReturnLeg' and 'commodityInterestLeg').</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
