Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommodityPhysicalEuropeanExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Exercise
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The parameters for defining the expiration date(s) and time(s) for a European style option.

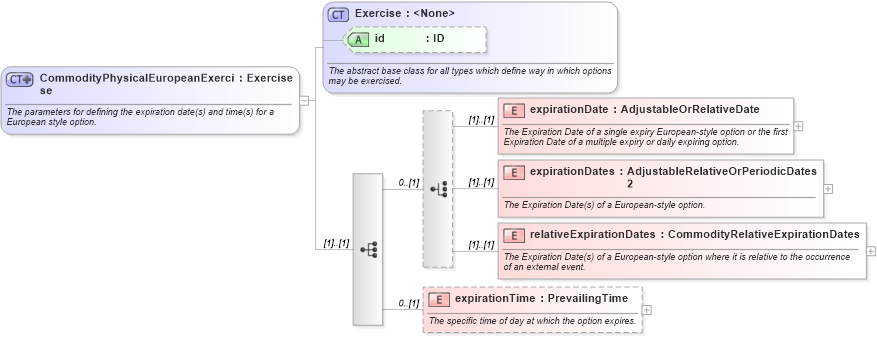

Collapse XSD Schema Diagram:
Drilldown into expirationTime in schema fpml-com-5-10_xsd1 Drilldown into relativeExpirationDates in schema fpml-com-5-10_xsd1 Drilldown into expirationDates in schema fpml-com-5-10_xsd1 Drilldown into expirationDate in schema fpml-com-5-10_xsd1 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Exercise in schema fpml-shared-5-10_xsd3XSD Diagram of CommodityPhysicalEuropeanExercise in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityPhysicalEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the expiration date(s) and time(s) for a European style option.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Exercise">
            <xsd:sequence>
                <xsd:choice minOccurs="0">
                    <xsd:element name="expirationDate" type="AdjustableOrRelativeDate">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The Expiration Date of a single expiry European-style option or the first Expiration Date of a multiple expiry or daily expiring option.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="expirationDates" type="AdjustableRelativeOrPeriodicDates2">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The Expiration Date(s) of a European-style option.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="relativeExpirationDates" type="CommodityRelativeExpirationDates">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The Expiration Date(s) of a European-style option where it is relative to the occurrence of an external event.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:choice>
                <xsd:element name="expirationTime" type="PrevailingTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The specific time of day at which the option expires.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expirationDate nsD:expirationDate (1) (1)
expirationDates nsD:expirationDates (1) (1)
relativeExpirationDates nsD:relativeExpirationDates (1) (1)
expirationTime nsD:expirationTime 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:europeanExercise
