Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommodityRelativeExpirationDates
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The Expiration Dates of the trade relative to the Calculation Periods.

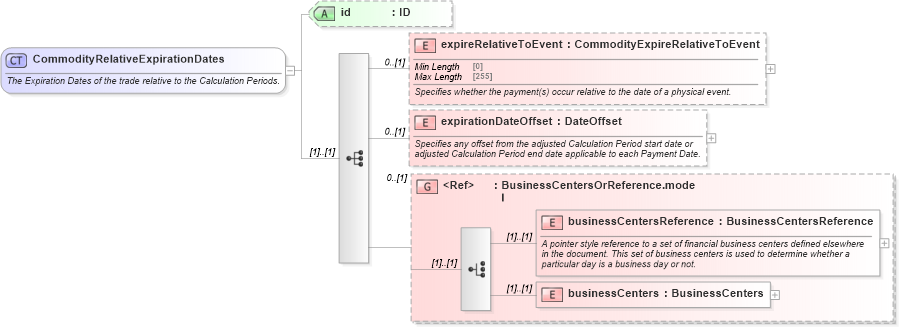

Collapse XSD Schema Diagram:
Drilldown into businessCenters in schema fpml-shared-5-10_xsd4 Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd4 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd4 Drilldown into expirationDateOffset in schema fpml-com-5-10_xsd2 Drilldown into expireRelativeToEvent in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2XSD Diagram of CommodityRelativeExpirationDates in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityRelativeExpirationDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The Expiration Dates of the trade relative to the Calculation Periods.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="expireRelativeToEvent" type="CommodityExpireRelativeToEvent" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies whether the payment(s) occur relative to the date of a physical event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="expirationDateOffset" type="DateOffset" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies any offset from the adjusted Calculation Period start date or adjusted Calculation Period end date applicable to each Payment Date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="BusinessCentersOrReference.model" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expireRelativeToEvent nsE:expireRelativeToEvent 0 (1)
expirationDateOffset nsE:expirationDateOffset 0 (1)
businessCentersReference nsE:businessCentersReference (1) (1)
businessCenters nsE:businessCenters (1) (1)
<xs:group> nsE:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:relativeCommencementDates, nsE:relativeExpirationDates, nsE:relativeExpirationDates
