Definition Type: ComplexType
Name: CommoditySettlementPeriodsPriceSchedule
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The fixed price schedule for electricity that applies to one or more groups of Settlement Periods.

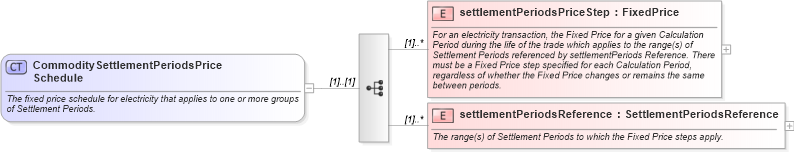

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-5-10_xsd Drilldown into settlementPeriodsPriceStep in schema fpml-com-5-10_xsdXSD Diagram of CommoditySettlementPeriodsPriceSchedule in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommoditySettlementPeriodsPriceSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The fixed price schedule for electricity that applies to one or more groups of Settlement Periods.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="settlementPeriodsPriceStep" type="FixedPrice" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">For an electricity transaction, the Fixed Price for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriods Reference. There must be a Fixed Price step specified for each Calculation Period, regardless of whether the Fixed Price changes or remains the same between periods.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="settlementPeriodsReference" type="SettlementPeriodsReference" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The range(s) of Settlement Periods to which the Fixed Price steps apply.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementPeriodsPriceStep nsA:settlementPeriodsPriceStep (1) unbounded
settlementPeriodsReference nsA:settlementPeriodsReference (1) unbounded
Collapse Derivation Tree:
Collapse References:
nsA:settlementPeriodsPriceSchedule
