Definition Type: ComplexType
Name: CommoditySwap
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Product
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The commodity swap product model is designed to support fixed-float swaps, float-float swaps, fixed vs. physical swaps, float vs. physical swaps as well as, weather specific swaps. Its design is fully compatible with other FpML products and the product reuses standard common types.

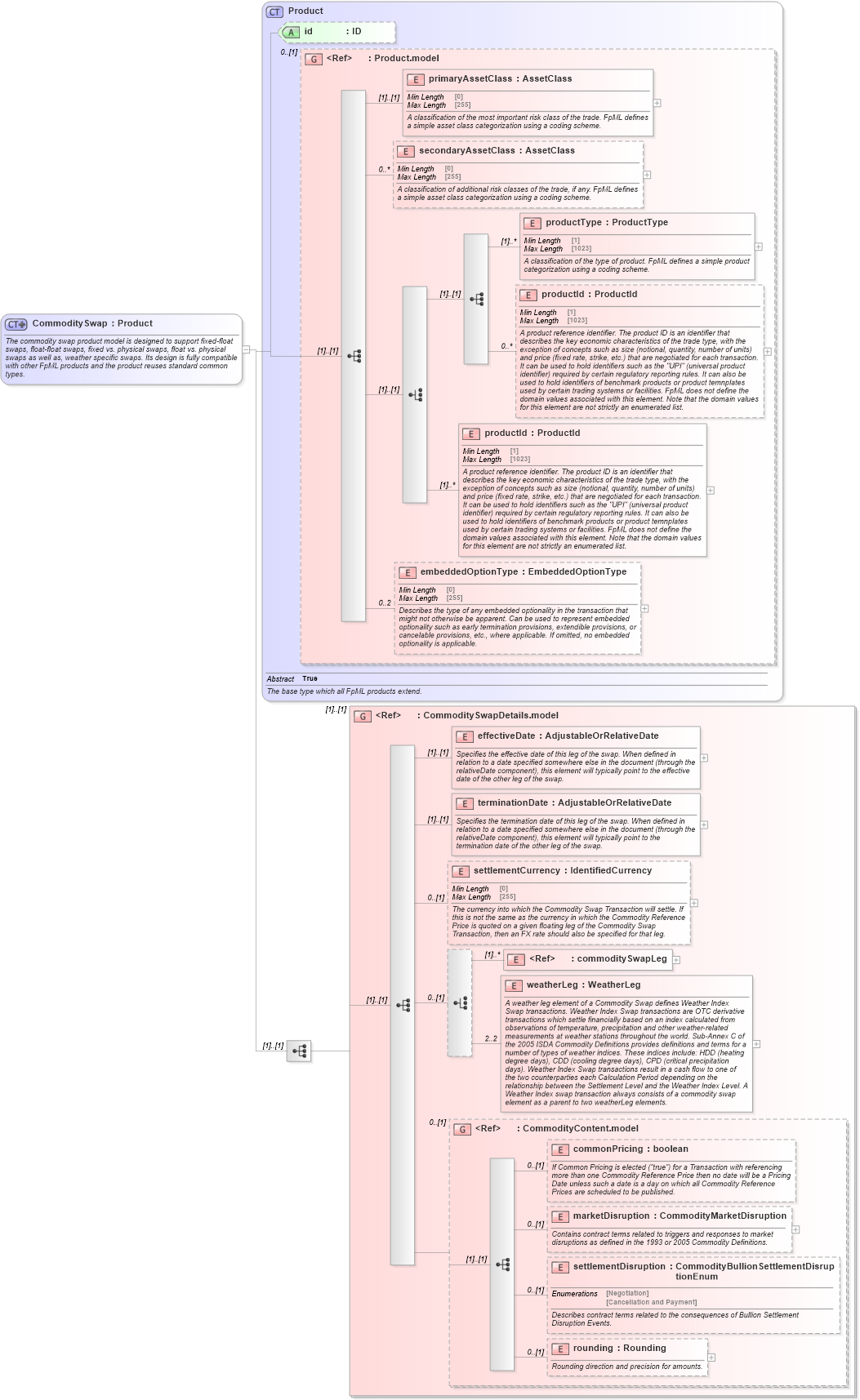

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-10_xsd1 Drilldown into settlementDisruption in schema fpml-com-5-10_xsd1 Drilldown into marketDisruption in schema fpml-com-5-10_xsd1 Drilldown into commonPricing in schema fpml-com-5-10_xsd1 Drilldown into CommodityContent.model in schema fpml-com-5-10_xsd1 Drilldown into weatherLeg in schema fpml-com-5-10_xsd1 Drilldown into commoditySwapLeg in schema fpml-com-5-10_xsd1 Drilldown into settlementCurrency in schema fpml-com-5-10_xsd1 Drilldown into terminationDate in schema fpml-com-5-10_xsd1 Drilldown into effectiveDate in schema fpml-com-5-10_xsd1 Drilldown into CommoditySwapDetails.model in schema fpml-com-5-10_xsd1 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3XSD Diagram of CommoditySwap in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommoditySwap">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The commodity swap product model is designed to support fixed-float swaps, float-float swaps, fixed vs. physical swaps, float vs. physical swaps as well as, weather specific swaps. Its design is fully compatible with other FpML products and the product reuses standard common types.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="CommoditySwapDetails.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
effectiveDate nsD:effectiveDate (1) (1)
terminationDate nsD:terminationDate (1) (1)
settlementCurrency nsD:settlementCurrency 0 (1)
commoditySwapLeg nsD:commoditySwapLeg (1) unbounded
weatherLeg nsD:weatherLeg 2 2
commonPricing nsD:commonPricing 0 (1)
marketDisruption nsD:marketDisruption 0 (1)
settlementDisruption nsD:settlementDisruption 0 (1)
rounding nsD:rounding 0 (1)
<xs:group> nsD:CommoditySwapDetails.model (1) (1)
<xs:group> nsD:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:commoditySwap
