Definition Type: ComplexType
Name: CommoditySwap
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Product
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The commodity swap product model is designed to support fixed-float swaps, float-float swaps, fixed vs. physical swaps, float vs. physical swaps as well as, weather specific swaps. Its design is fully compatible with other FpML products and the product reuses standard common types.

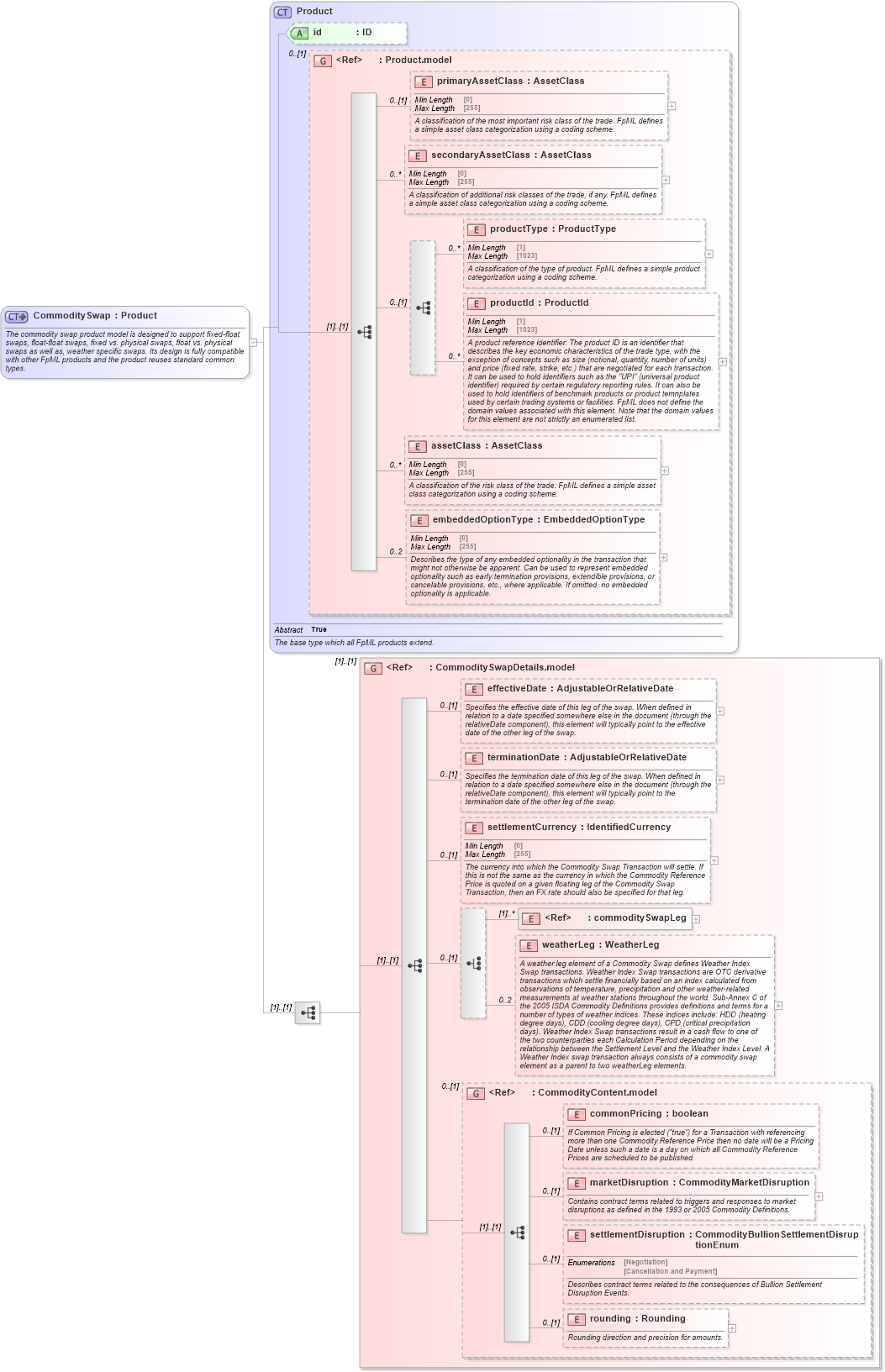

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-10_xsd2 Drilldown into settlementDisruption in schema fpml-com-5-10_xsd2 Drilldown into marketDisruption in schema fpml-com-5-10_xsd2 Drilldown into commonPricing in schema fpml-com-5-10_xsd2 Drilldown into CommodityContent.model in schema fpml-com-5-10_xsd2 Drilldown into weatherLeg in schema fpml-com-5-10_xsd2 Drilldown into commoditySwapLeg in schema fpml-com-5-10_xsd2 Drilldown into settlementCurrency in schema fpml-com-5-10_xsd2 Drilldown into terminationDate in schema fpml-com-5-10_xsd2 Drilldown into effectiveDate in schema fpml-com-5-10_xsd2 Drilldown into CommoditySwapDetails.model in schema fpml-com-5-10_xsd2 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd4 Drilldown into assetClass in schema fpml-shared-5-10_xsd4 Drilldown into productId in schema fpml-shared-5-10_xsd4 Drilldown into productType in schema fpml-shared-5-10_xsd4 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into Product.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Product in schema fpml-shared-5-10_xsd4XSD Diagram of CommoditySwap in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommoditySwap">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The commodity swap product model is designed to support fixed-float swaps, float-float swaps, fixed vs. physical swaps, float vs. physical swaps as well as, weather specific swaps. Its design is fully compatible with other FpML products and the product reuses standard common types.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="CommoditySwapDetails.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsE:primaryAssetClass 0 (1)
secondaryAssetClass nsE:secondaryAssetClass 0 unbounded
productType nsE:productType 0 unbounded
productId nsE:productId 0 unbounded
assetClass nsE:assetClass 0 unbounded
embeddedOptionType nsE:embeddedOptionType 0 2
effectiveDate nsE:effectiveDate 0 (1)
terminationDate nsE:terminationDate 0 (1)
settlementCurrency nsE:settlementCurrency 0 (1)
commoditySwapLeg nsE:commoditySwapLeg (1) unbounded
weatherLeg nsE:weatherLeg 0 2
commonPricing nsE:commonPricing 0 (1)
marketDisruption nsE:marketDisruption 0 (1)
settlementDisruption nsE:settlementDisruption 0 (1)
rounding nsE:rounding 0 (1)
<xs:group> nsE:CommoditySwapDetails.model (1) (1)
<xs:group> nsE:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:commoditySwap
