Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commoditySwap
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommoditySwaptionUnderlying
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The underlying commodity swap definiton.

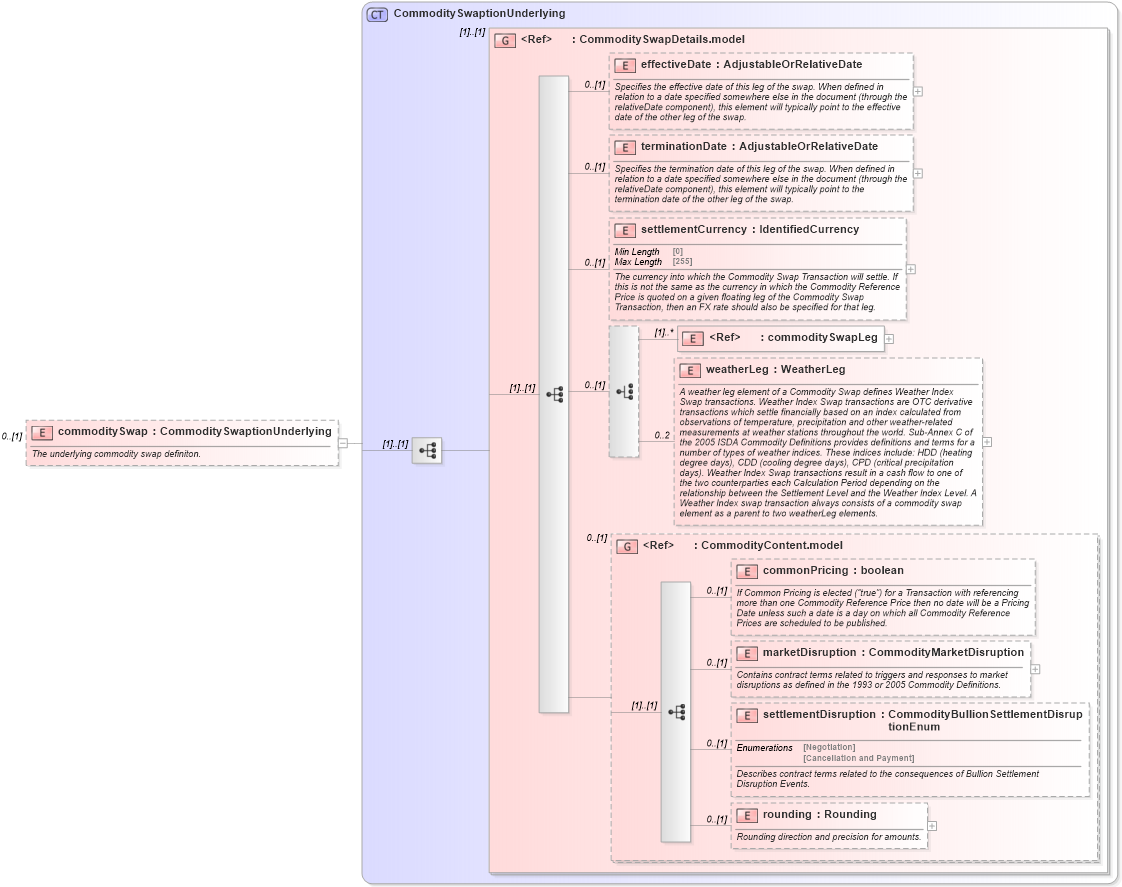

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-10_xsd2 Drilldown into settlementDisruption in schema fpml-com-5-10_xsd2 Drilldown into marketDisruption in schema fpml-com-5-10_xsd2 Drilldown into commonPricing in schema fpml-com-5-10_xsd2 Drilldown into CommodityContent.model in schema fpml-com-5-10_xsd2 Drilldown into weatherLeg in schema fpml-com-5-10_xsd2 Drilldown into commoditySwapLeg in schema fpml-com-5-10_xsd2 Drilldown into settlementCurrency in schema fpml-com-5-10_xsd2 Drilldown into terminationDate in schema fpml-com-5-10_xsd2 Drilldown into effectiveDate in schema fpml-com-5-10_xsd2 Drilldown into CommoditySwapDetails.model in schema fpml-com-5-10_xsd2 Drilldown into CommoditySwaptionUnderlying in schema fpml-com-5-10_xsd2XSD Diagram of commoditySwap in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commoditySwap" type="CommoditySwaptionUnderlying" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The underlying commodity swap definiton.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
effectiveDate nsE:effectiveDate 0 (1)
terminationDate nsE:terminationDate 0 (1)
settlementCurrency nsE:settlementCurrency 0 (1)
commoditySwapLeg nsE:commoditySwapLeg (1) unbounded
weatherLeg nsE:weatherLeg 0 2
commonPricing nsE:commonPricing 0 (1)
marketDisruption nsE:marketDisruption 0 (1)
settlementDisruption nsE:settlementDisruption 0 (1)
rounding nsE:rounding 0 (1)
<xs:group> nsE:CommoditySwapDetails.model (1) (1)
<xs:group> nsE:CommodityContent.model 0 (1)
Collapse Derivation Tree:
