Docs for schema item constantPayoffRegion in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	constantPayoffRegion
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxTargetConstantPayoffRegion
Containing Schema:	fpml-fx-targets-5-10.xsd
MinOccurs	0
MaxOccurs	unbounded
Abstract
Documentation:	A region in which constant payoff applies i.e. the payoff is defined as a contant currency amount or fixing adjustment, unrelated to the fixing. In absence of the "payoff" element, zero payoff is assumed (note: zero payoff does not necessarily imply that no settlement occurs).

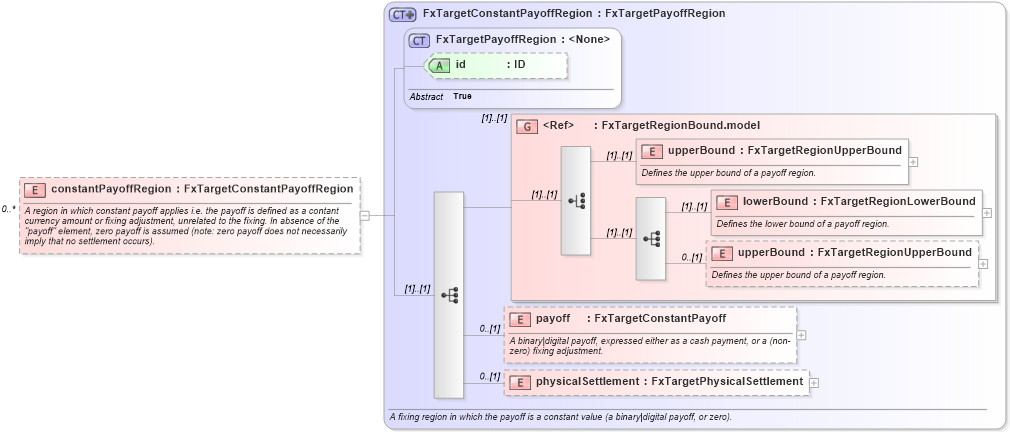

XSD Schema Diagram:

XSD Diagram of constantPayoffRegion in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="constantPayoffRegion" type="FxTargetConstantPayoffRegion" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A region in which constant payoff applies i.e. the payoff is defined as a contant currency amount or fixing adjustment, unrelated to the fixing. In absence of the "payoff" element, zero payoff is assumed (note: zero payoff does not necessarily imply that no settlement occurs).</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
upperBound	nsA:upperBound	(1)	(1)
lowerBound	nsA:lowerBound	(1)	(1)
upperBound	nsA:upperBound	0	(1)
payoff	nsA:payoff	0	(1)
physicalSettlement	nsA:physicalSettlement	0	(1)
<xs:group>	nsA:FxTargetRegionBound.model	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		Optional

Derivation Tree:
	nsA:FxTargetPayoffRegion nsA:FxTargetConstantPayoffRegion *constantPayoffRegion*
