Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: constituentExchangeId
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:ExchangeId
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Identification of all the exchanges where constituents are traded. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.

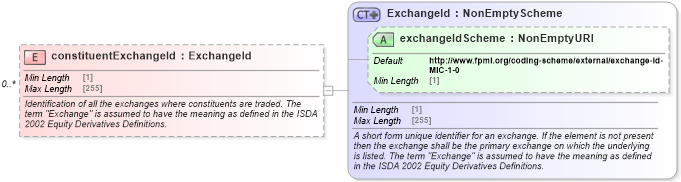

Collapse XSD Schema Diagram:
Drilldown into exchangeIdScheme in schema fpml-shared-5-10_xsd3 Drilldown into ExchangeId in schema fpml-shared-5-10_xsd3XSD Diagram of constituentExchangeId in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="constituentExchangeId" type="ExchangeId" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identification of all the exchanges where constituents are traded. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
exchangeIdScheme nsD:exchangeIdScheme http://www.fpml.org/coding-scheme/external/exchange-id-MIC-1-0 (Optional)
Collapse Derivation Tree:
