Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: correlation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Correlation
Containing Schema: fpml-correlation-swaps-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Specifies Correlation.

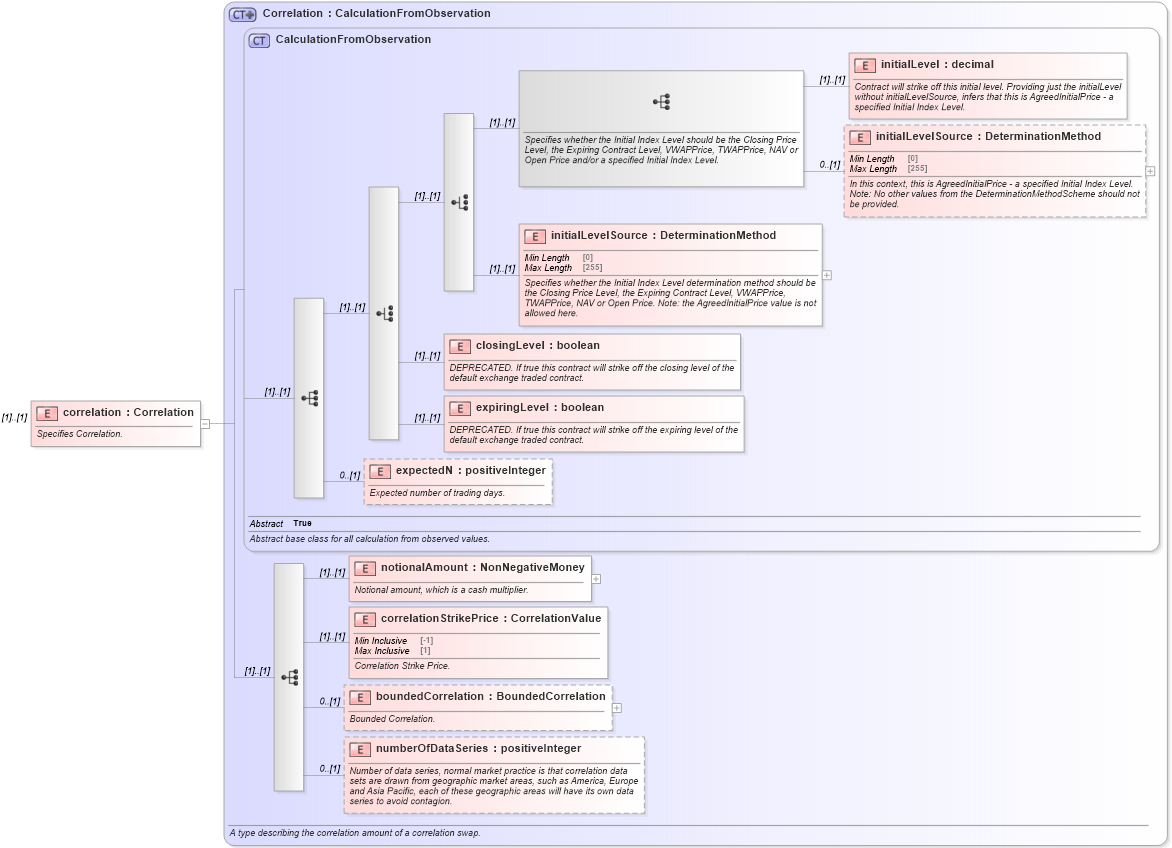

Collapse XSD Schema Diagram:
Drilldown into numberOfDataSeries in schema fpml-eq-shared-5-10_xsd1 Drilldown into boundedCorrelation in schema fpml-eq-shared-5-10_xsd1 Drilldown into correlationStrikePrice in schema fpml-eq-shared-5-10_xsd1 Drilldown into notionalAmount in schema fpml-eq-shared-5-10_xsd1 Drilldown into expectedN in schema fpml-eq-shared-5-10_xsd1 Drilldown into expiringLevel in schema fpml-eq-shared-5-10_xsd1 Drilldown into closingLevel in schema fpml-eq-shared-5-10_xsd1 Drilldown into initialLevelSource in schema fpml-eq-shared-5-10_xsd1 Drilldown into initialLevelSource in schema fpml-eq-shared-5-10_xsd1 Drilldown into initialLevel in schema fpml-eq-shared-5-10_xsd1 Drilldown into CalculationFromObservation in schema fpml-eq-shared-5-10_xsd1 Drilldown into Correlation in schema fpml-eq-shared-5-10_xsd1XSD Diagram of correlation in schema fpml-correlation-swaps-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="correlation" type="Correlation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies Correlation.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialLevel nsD:initialLevel (1) (1)
initialLevelSource nsD:initialLevelSource 0 (1)
initialLevelSource nsD:initialLevelSource (1) (1)
closingLevel nsD:closingLevel (1) (1)
expiringLevel nsD:expiringLevel (1) (1)
expectedN nsD:expectedN 0 (1)
notionalAmount nsD:notionalAmount (1) (1)
correlationStrikePrice nsD:correlationStrikePrice (1) (1)
boundedCorrelation nsD:boundedCorrelation 0 (1)
numberOfDataSeries nsD:numberOfDataSeries 0 (1)
Collapse Derivation Tree:
