Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: correlationId
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:CorrelationId
Containing Schema: fpml-msg-5-10.xsd
MinOccurs 0
MaxOccurs 2
Abstract
Documentation:
A qualified identifier used to correlate between messages

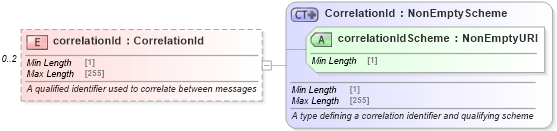

Collapse XSD Schema Diagram:
Drilldown into correlationIdScheme in schema fpml-msg-5-10_xsd4 Drilldown into CorrelationId in schema fpml-msg-5-10_xsd4XSD Diagram of correlationId in schema fpml-msg-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="correlationId" type="CorrelationId" minOccurs="0" maxOccurs="2">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A qualified identifier used to correlate between messages</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
correlationIdScheme nsF:correlationIdScheme Required
Collapse Derivation Tree:
