Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: counterCurrencyAmount
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxCounterCurrencyAmount
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The opposite currency amount. The 'counterCurrencyAmount' element is supplied if the accrual process operates on specific amounts of both notional and counter currency within this accrual region.

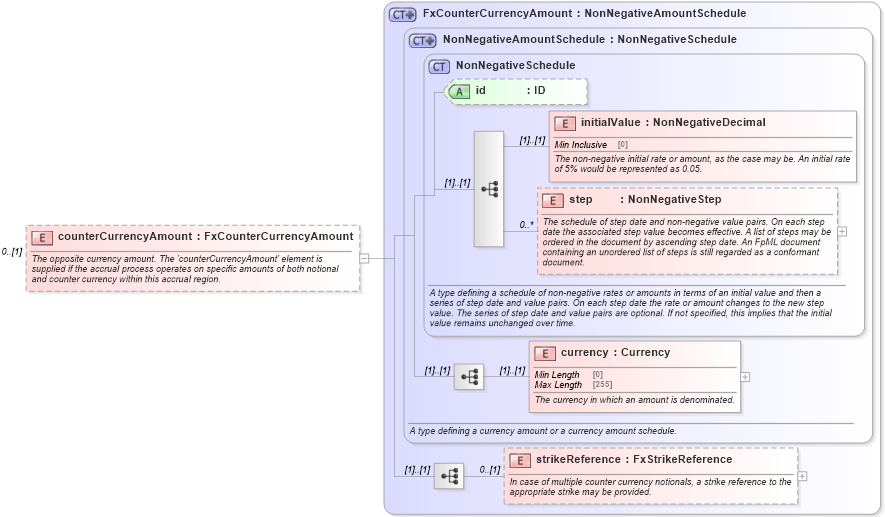

Collapse XSD Schema Diagram:
Drilldown into strikeReference in schema fpml-fx-targets-5-10_xsd Drilldown into currency in schema fpml-shared-5-10_xsd Drilldown into step in schema fpml-shared-5-10_xsd Drilldown into initialValue in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd Drilldown into FxCounterCurrencyAmount in schema fpml-fx-targets-5-10_xsdXSD Diagram of counterCurrencyAmount in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="counterCurrencyAmount" type="FxCounterCurrencyAmount" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The opposite currency amount. The 'counterCurrencyAmount' element is supplied if the accrual process operates on specific amounts of both notional and counter currency within this accrual region.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsA:initialValue (1) (1)
step nsA:step 0 unbounded
currency nsA:currency (1) (1)
strikeReference nsA:strikeReference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
