Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CreditLimitUtilizationPosition
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-business-events-5-10.xsd
Abstract

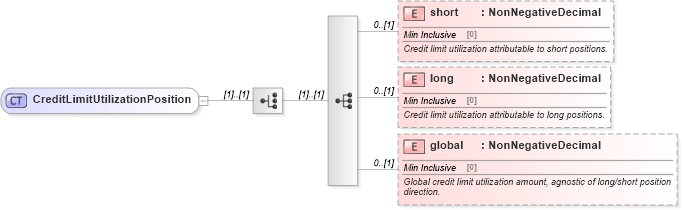

Collapse XSD Schema Diagram:
Drilldown into global in schema fpml-business-events-5-10_xsd1 Drilldown into long in schema fpml-business-events-5-10_xsd1 Drilldown into short in schema fpml-business-events-5-10_xsd1XSD Diagram of CreditLimitUtilizationPosition in schema fpml-business-events-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CreditLimitUtilizationPosition">
    <xsd:annotation>
        <xsd:documentation />
    </xsd:annotation>
    <xsd:choice>
        <xsd:sequence>
            <xsd:element name="short" type="NonNegativeDecimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Credit limit utilization attributable to short positions.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="long" type="NonNegativeDecimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Credit limit utilization attributable to long positions.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="global" type="NonNegativeDecimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Global credit limit utilization amount, agnostic of long/short position direction.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
short nsC:short 0 (1)
long nsC:long 0 (1)
global nsC:global 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:executed, nsC:pending
