Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CreditSupportAgreement
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
The agreement executed between the parties and intended to govern collateral arrangement for all OTC derivatives transactions between those parties.

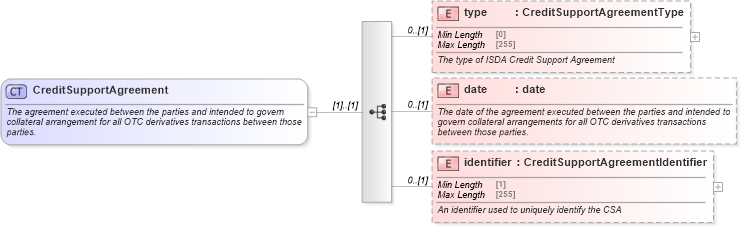

Collapse XSD Schema Diagram:
Drilldown into identifier in schema fpml-shared-5-10_xsd4 Drilldown into date in schema fpml-shared-5-10_xsd4 Drilldown into type in schema fpml-shared-5-10_xsd4XSD Diagram of CreditSupportAgreement in schema fpml-shared-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CreditSupportAgreement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The agreement executed between the parties and intended to govern collateral arrangement for all OTC derivatives transactions between those parties.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="type" type="CreditSupportAgreementType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The type of ISDA Credit Support Agreement</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="date" type="xsd:date" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date of the agreement executed between the parties and intended to govern collateral arrangements for all OTC derivatives transactions between those parties.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="identifier" type="CreditSupportAgreementIdentifier" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An identifier used to uniquely identify the CSA</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type nsE:type 0 (1)
date nsE:date 0 (1)
identifier nsE:identifier 0 (1)
Collapse Derivation Tree:
Collapse References:
nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreementnsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement, nsE:creditSupportAgreement,
