Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: deliveryConditions
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CoalDelivery
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The physical delivery conditions for the transaction.

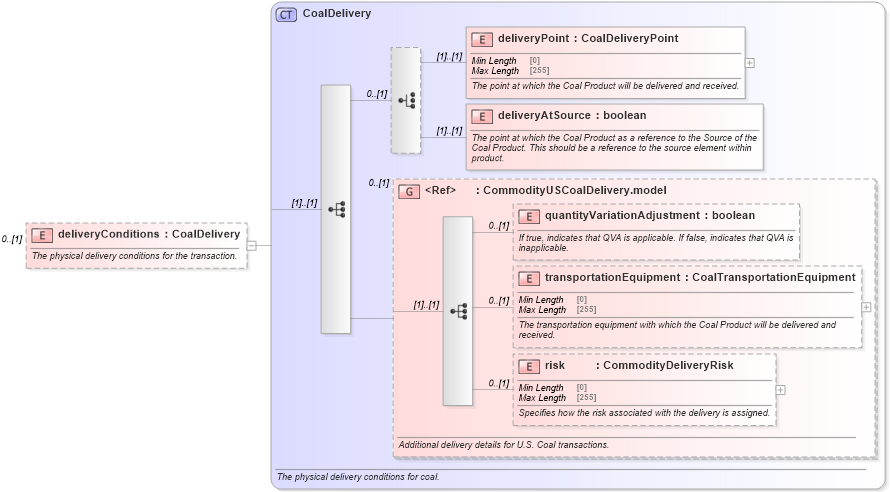

Collapse XSD Schema Diagram:
Drilldown into risk in schema fpml-com-5-10_xsd2 Drilldown into transportationEquipment in schema fpml-com-5-10_xsd2 Drilldown into quantityVariationAdjustment in schema fpml-com-5-10_xsd2 Drilldown into CommodityUSCoalDelivery.model in schema fpml-com-5-10_xsd2 Drilldown into deliveryAtSource in schema fpml-com-5-10_xsd2 Drilldown into deliveryPoint in schema fpml-com-5-10_xsd2 Drilldown into CoalDelivery in schema fpml-com-5-10_xsd2XSD Diagram of deliveryConditions in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="deliveryConditions" type="CoalDelivery" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical delivery conditions for the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveryPoint nsE:deliveryPoint (1) (1)
deliveryAtSource nsE:deliveryAtSource (1) (1)
quantityVariationAdjustment nsE:quantityVariationAdjustment 0 (1)
transportationEquipment nsE:transportationEquipment 0 (1)
risk nsE:risk 0 (1)
<xs:group> nsE:CommodityUSCoalDelivery.model 0 (1)
Collapse Derivation Tree:
