Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: deliveryConditions
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:GasDelivery
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The physical delivery conditions for the transaction.

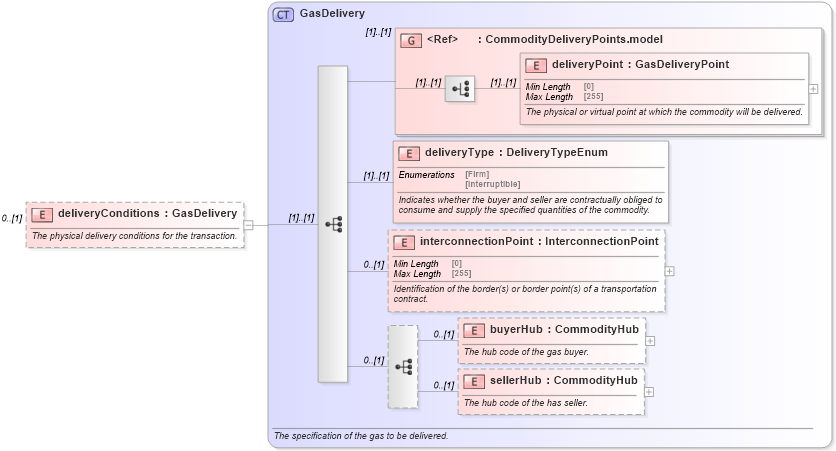

Collapse XSD Schema Diagram:
Drilldown into sellerHub in schema fpml-com-5-10_xsd3 Drilldown into buyerHub in schema fpml-com-5-10_xsd3 Drilldown into interconnectionPoint in schema fpml-com-5-10_xsd3 Drilldown into deliveryType in schema fpml-com-5-10_xsd3 Drilldown into deliveryPoint in schema fpml-com-5-10_xsd3 Drilldown into CommodityDeliveryPoints.model in schema fpml-com-5-10_xsd3 Drilldown into GasDelivery in schema fpml-com-5-10_xsd3XSD Diagram of deliveryConditions in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="deliveryConditions" type="GasDelivery" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical delivery conditions for the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveryPoint nsF:deliveryPoint (1) (1)
deliveryType nsF:deliveryType (1) (1)
interconnectionPoint nsF:interconnectionPoint 0 (1)
buyerHub nsF:buyerHub 0 (1)
sellerHub nsF:sellerHub 0 (1)
<xs:group> nsF:CommodityDeliveryPoints.model (1) (1)
Collapse Derivation Tree:
