Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: deliveryConditions
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:MetalDelivery
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The physical delivery arrangements and requirements for a physically settled non-precious metal transaction.

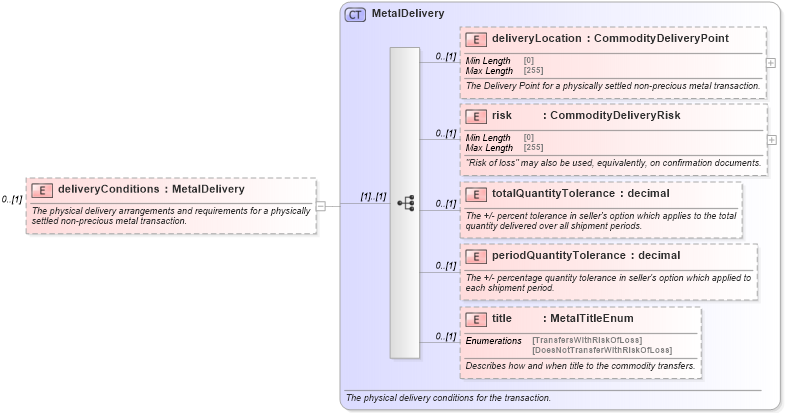

Collapse XSD Schema Diagram:
Drilldown into title in schema fpml-com-5-10_xsd1 Drilldown into periodQuantityTolerance in schema fpml-com-5-10_xsd1 Drilldown into totalQuantityTolerance in schema fpml-com-5-10_xsd1 Drilldown into risk in schema fpml-com-5-10_xsd1 Drilldown into deliveryLocation in schema fpml-com-5-10_xsd1 Drilldown into MetalDelivery in schema fpml-com-5-10_xsd1XSD Diagram of deliveryConditions in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="deliveryConditions" type="MetalDelivery" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical delivery arrangements and requirements for a physically settled non-precious metal transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveryLocation nsD:deliveryLocation 0 (1)
risk nsD:risk 0 (1)
totalQuantityTolerance nsD:totalQuantityTolerance 0 (1)
periodQuantityTolerance nsD:periodQuantityTolerance 0 (1)
title nsD:title 0 (1)
Collapse Derivation Tree:
