Docs for schema item deliveryPeriods in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	deliveryPeriods
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:CommodityDeliveryPeriods
Containing Schema:	fpml-com-5-10.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	The different options for specifying the Delivery or Supply Periods. Unless the quantity or price is to vary periodically during the trade or physical delivery occurs on a periodic basis, periodsSchedule should be used and set to 1T.

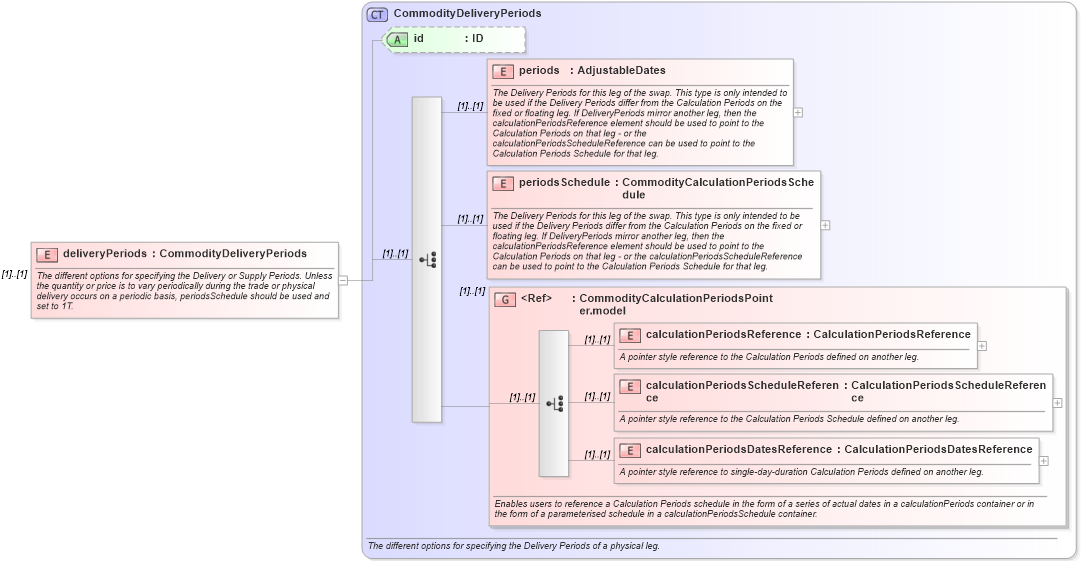

XSD Schema Diagram:

XSD Diagram of deliveryPeriods in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="deliveryPeriods" type="CommodityDeliveryPeriods">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The different options for specifying the Delivery or Supply Periods. Unless the quantity or price is to vary periodically during the trade or physical delivery occurs on a periodic basis, periodsSchedule should be used and set to 1T.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
periods	nsA:periods	(1)	(1)
periodsSchedule	nsA:periodsSchedule	(1)	(1)
calculationPeriodsReference	nsA:calculationPeriodsReference	(1)	(1)
calculationPeriodsScheduleReference	nsA:calculationPeriodsScheduleReference	(1)	(1)
calculationPeriodsDatesReference	nsA:calculationPeriodsDatesReference	(1)	(1)
<xs:group>	nsA:CommodityCalculationPeriodsPointer.model	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:CommodityDeliveryPeriods *deliveryPeriods*
