Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: deliveryType
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ElectricityDeliveryType
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Indicates the under what conditions the Parties' delivery obligations apply.

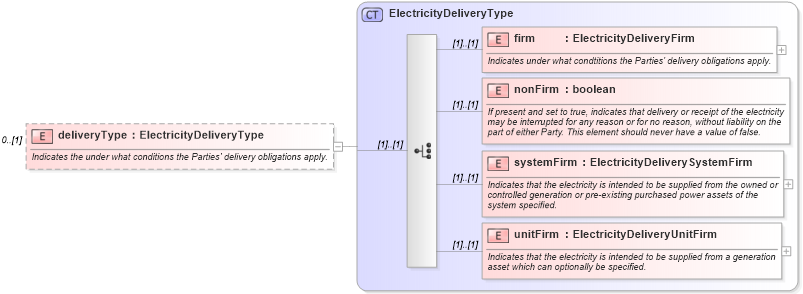

Collapse XSD Schema Diagram:
Drilldown into unitFirm in schema fpml-com-5-10_xsd2 Drilldown into systemFirm in schema fpml-com-5-10_xsd2 Drilldown into nonFirm in schema fpml-com-5-10_xsd2 Drilldown into firm in schema fpml-com-5-10_xsd2 Drilldown into ElectricityDeliveryType in schema fpml-com-5-10_xsd2XSD Diagram of deliveryType in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="deliveryType" type="ElectricityDeliveryType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Indicates the under what conditions the Parties' delivery obligations apply.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
firm nsE:firm (1) (1)
nonFirm nsE:nonFirm (1) (1)
systemFirm nsE:systemFirm (1) (1)
unitFirm nsE:unitFirm (1) (1)
Collapse Derivation Tree:
