Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: DisputeResolutionMethod
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-collateral-processes-5-10.xsd
Abstract

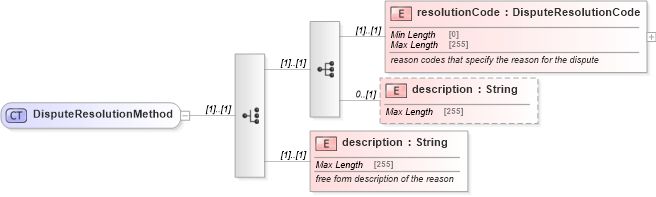

Collapse XSD Schema Diagram:
Drilldown into description in schema fpml-collateral-processes-5-10_xsd Drilldown into description in schema fpml-collateral-processes-5-10_xsd Drilldown into resolutionCode in schema fpml-collateral-processes-5-10_xsdXSD Diagram of DisputeResolutionMethod in schema fpml-collateral-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="DisputeResolutionMethod">
    <xsd:choice>
        <xsd:sequence>
            <xsd:element name="resolutionCode" type="DisputeResolutionCode">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">reason codes that specify the reason for the dispute</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="description" type="String" minOccurs="0" />
        </xsd:sequence>
        <xsd:element name="description" type="String">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">free form description of the reason</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
resolutionCode nsE:resolutionCode (1) (1)
description nsE:description 0 (1)
description nsE:description (1) (1)
Collapse Derivation Tree:
Collapse References:
nsE:disputeResolutionMethod
