Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: DividendPeriodPayment
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:DividendPeriod
Containing Schema: fpml-dividend-swaps-5-10.xsd
Abstract
Documentation:
A time bounded dividend period, with fixed strike and a dividend payment date per period.

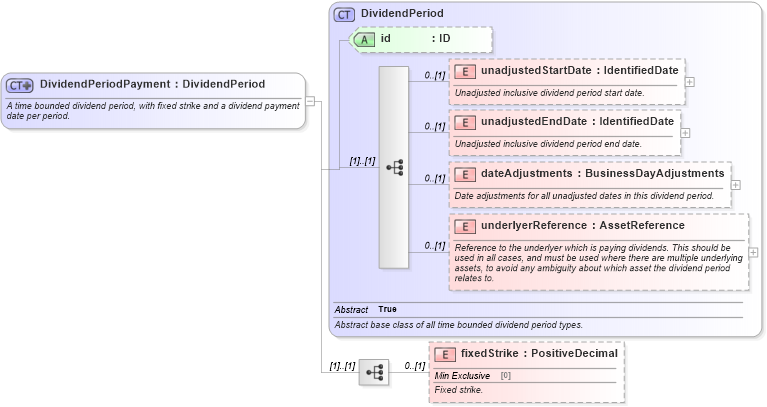

Collapse XSD Schema Diagram:
Drilldown into fixedStrike in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into underlyerReference in schema fpml-eq-shared-5-10_xsd3 Drilldown into dateAdjustments in schema fpml-eq-shared-5-10_xsd3 Drilldown into unadjustedEndDate in schema fpml-eq-shared-5-10_xsd3 Drilldown into unadjustedStartDate in schema fpml-eq-shared-5-10_xsd3 Drilldown into id in schema fpml-eq-shared-5-10_xsd3 Drilldown into DividendPeriod in schema fpml-eq-shared-5-10_xsd3XSD Diagram of DividendPeriodPayment in schema fpml-dividend-swaps-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="DividendPeriodPayment">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A time bounded dividend period, with fixed strike and a dividend payment date per period.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="DividendPeriod">
            <xsd:sequence>
                <xsd:element name="fixedStrike" type="PositiveDecimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Fixed strike.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedStartDate nsF:unadjustedStartDate 0 (1)
unadjustedEndDate nsF:unadjustedEndDate 0 (1)
dateAdjustments nsF:dateAdjustments 0 (1)
underlyerReference nsF:underlyerReference 0 (1)
fixedStrike nsF:fixedStrike 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:dividendPeriod
