Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: documentation
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Documentation
Containing Schema: fpml-doc-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines the definitions that govern the document and should include the year and type of definitions referenced, along with any relevant documentation (such as master agreement) and the date it was signed.

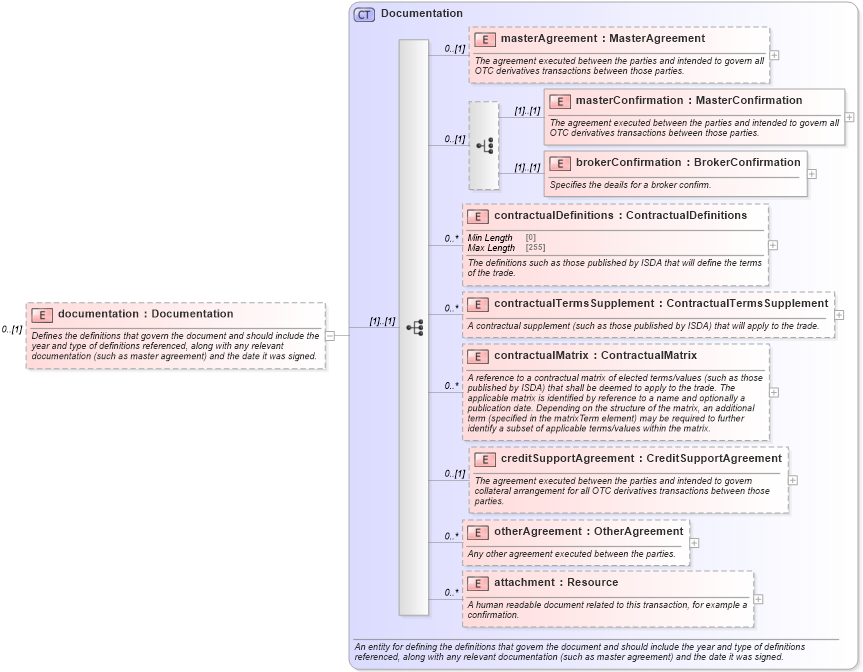

Collapse XSD Schema Diagram:
Drilldown into attachment in schema fpml-shared-5-10_xsd4 Drilldown into otherAgreement in schema fpml-shared-5-10_xsd4 Drilldown into creditSupportAgreement in schema fpml-shared-5-10_xsd4 Drilldown into contractualMatrix in schema fpml-shared-5-10_xsd4 Drilldown into contractualTermsSupplement in schema fpml-shared-5-10_xsd4 Drilldown into contractualDefinitions in schema fpml-shared-5-10_xsd4 Drilldown into brokerConfirmation in schema fpml-shared-5-10_xsd4 Drilldown into masterConfirmation in schema fpml-shared-5-10_xsd4 Drilldown into masterAgreement in schema fpml-shared-5-10_xsd4 Drilldown into Documentation in schema fpml-shared-5-10_xsd4XSD Diagram of documentation in schema fpml-doc-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="documentation" type="Documentation" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the definitions that govern the document and should include the year and type of definitions referenced, along with any relevant documentation (such as master agreement) and the date it was signed.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
masterAgreement nsE:masterAgreement 0 (1)
masterConfirmation nsE:masterConfirmation (1) (1)
brokerConfirmation nsE:brokerConfirmation (1) (1)
contractualDefinitions nsE:contractualDefinitions 0 unbounded
contractualTermsSupplement nsE:contractualTermsSupplement 0 unbounded
contractualMatrix nsE:contractualMatrix 0 unbounded
creditSupportAgreement nsE:creditSupportAgreement 0 (1)
otherAgreement nsE:otherAgreement 0 unbounded
attachment nsE:attachment 0 unbounded
Collapse Derivation Tree:
