Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equityAmericanExercise
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:EquityAmericanExercise
Containing Schema: fpml-eqd-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style equity option together with the rules governing the quantity of the underlying that can be exercised on any given exercise date.

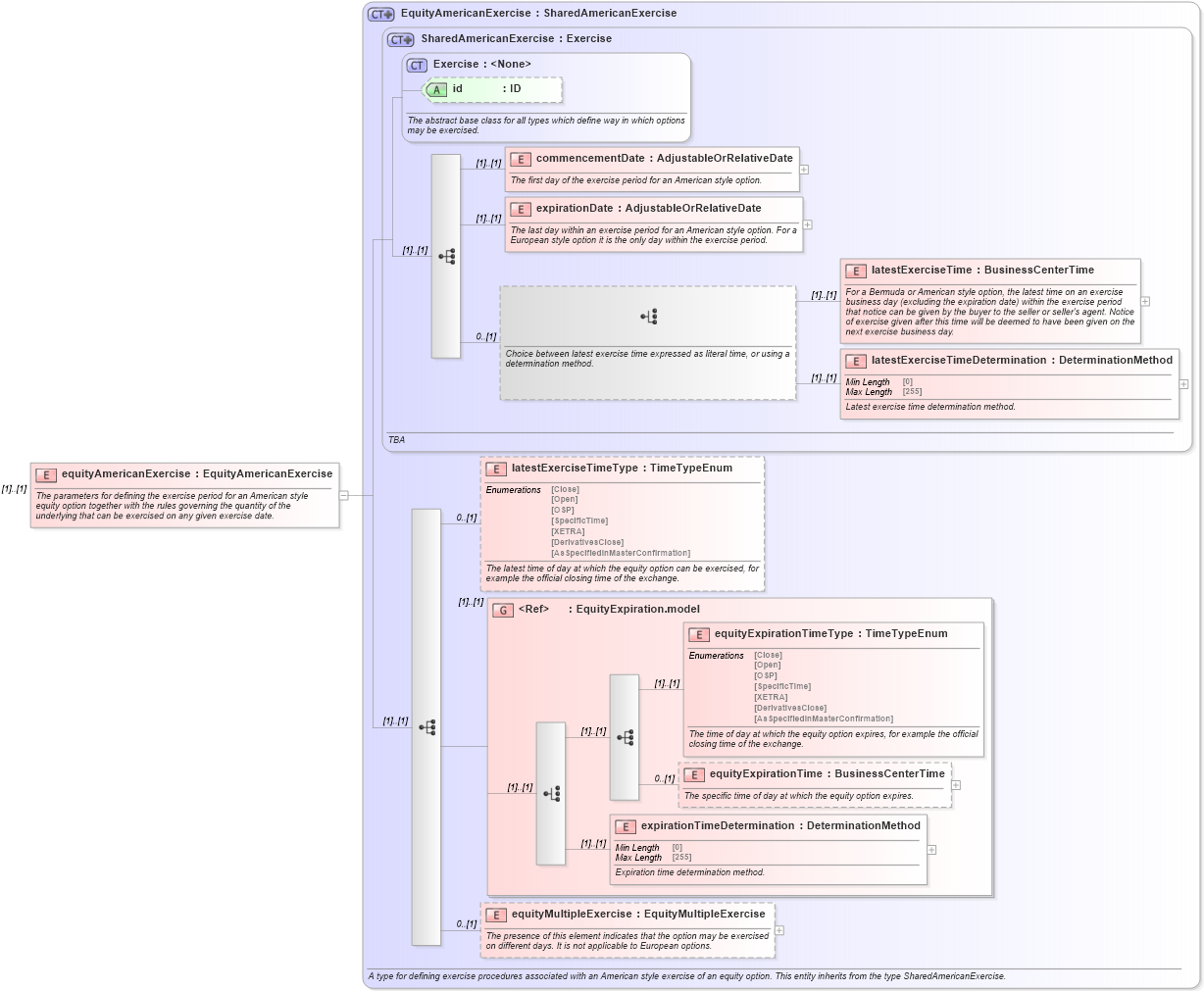

Collapse XSD Schema Diagram:
Drilldown into equityMultipleExercise in schema fpml-eqd-5-10_xsd Drilldown into expirationTimeDetermination in schema fpml-eqd-5-10_xsd Drilldown into equityExpirationTime in schema fpml-eqd-5-10_xsd Drilldown into equityExpirationTimeType in schema fpml-eqd-5-10_xsd Drilldown into EquityExpiration.model in schema fpml-eqd-5-10_xsd Drilldown into latestExerciseTimeType in schema fpml-eqd-5-10_xsd Drilldown into latestExerciseTimeDetermination in schema fpml-shared-5-10_xsd Drilldown into latestExerciseTime in schema fpml-shared-5-10_xsd Drilldown into expirationDate in schema fpml-shared-5-10_xsd Drilldown into commencementDate in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Exercise in schema fpml-shared-5-10_xsd Drilldown into SharedAmericanExercise in schema fpml-shared-5-10_xsd Drilldown into EquityAmericanExercise in schema fpml-eqd-5-10_xsdXSD Diagram of equityAmericanExercise in schema fpml-eqd-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equityAmericanExercise" type="EquityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style equity option together with the rules governing the quantity of the underlying that can be exercised on any given exercise date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commencementDate nsA:commencementDate (1) (1)
expirationDate nsA:expirationDate (1) (1)
latestExerciseTime nsA:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsA:latestExerciseTimeDetermination (1) (1)
latestExerciseTimeType nsA:latestExerciseTimeType 0 (1)
equityExpirationTimeType nsA:equityExpirationTimeType (1) (1)
equityExpirationTime nsA:equityExpirationTime 0 (1)
expirationTimeDetermination nsA:expirationTimeDetermination (1) (1)
equityMultipleExercise nsA:equityMultipleExercise 0 (1)
<xs:group> nsA:EquityExpiration.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
