Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equityAmericanExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:EquityAmericanExercise
Containing Schema: fpml-eqd-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an American style equity option together with the rules governing the quantity of the underlying that can be exercised on any given exercise date.

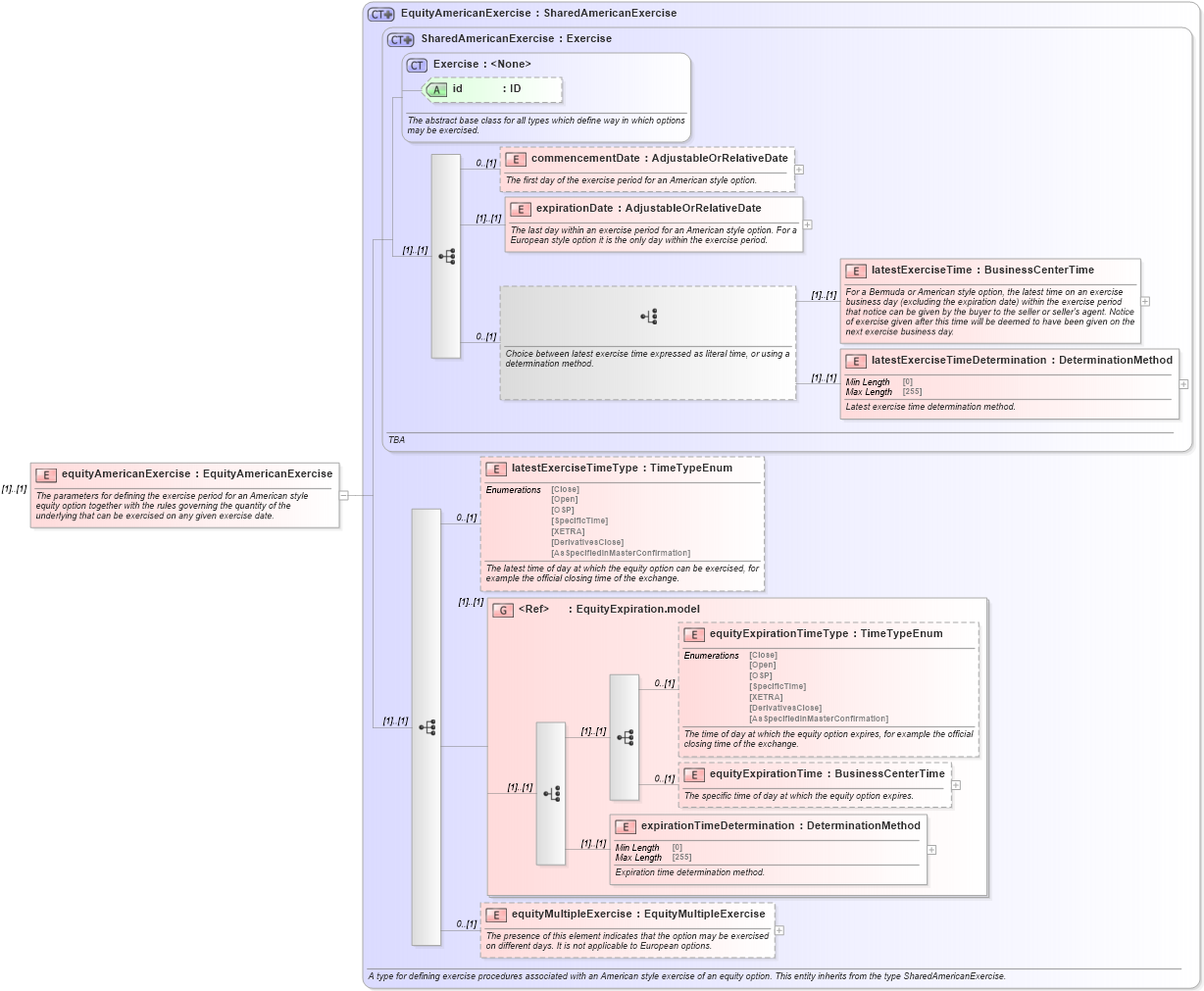

Collapse XSD Schema Diagram:
Drilldown into equityMultipleExercise in schema fpml-eqd-5-10_xsd1 Drilldown into expirationTimeDetermination in schema fpml-eqd-5-10_xsd1 Drilldown into equityExpirationTime in schema fpml-eqd-5-10_xsd1 Drilldown into equityExpirationTimeType in schema fpml-eqd-5-10_xsd1 Drilldown into EquityExpiration.model in schema fpml-eqd-5-10_xsd1 Drilldown into latestExerciseTimeType in schema fpml-eqd-5-10_xsd1 Drilldown into latestExerciseTimeDetermination in schema fpml-shared-5-10_xsd3 Drilldown into latestExerciseTime in schema fpml-shared-5-10_xsd3 Drilldown into expirationDate in schema fpml-shared-5-10_xsd3 Drilldown into commencementDate in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Exercise in schema fpml-shared-5-10_xsd3 Drilldown into SharedAmericanExercise in schema fpml-shared-5-10_xsd3 Drilldown into EquityAmericanExercise in schema fpml-eqd-5-10_xsd1XSD Diagram of equityAmericanExercise in schema fpml-eqd-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equityAmericanExercise" type="EquityAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an American style equity option together with the rules governing the quantity of the underlying that can be exercised on any given exercise date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commencementDate nsD:commencementDate 0 (1)
expirationDate nsD:expirationDate (1) (1)
latestExerciseTime nsD:latestExerciseTime (1) (1)
latestExerciseTimeDetermination nsD:latestExerciseTimeDetermination (1) (1)
latestExerciseTimeType nsD:latestExerciseTimeType 0 (1)
equityExpirationTimeType nsD:equityExpirationTimeType 0 (1)
equityExpirationTime nsD:equityExpirationTime 0 (1)
expirationTimeDetermination nsD:expirationTimeDetermination (1) (1)
equityMultipleExercise nsD:equityMultipleExercise 0 (1)
<xs:group> nsD:EquityExpiration.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
