Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equityEuropeanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:EquityEuropeanExercise
Containing Schema: fpml-eqd-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the expiration date and time for a European style equity option.

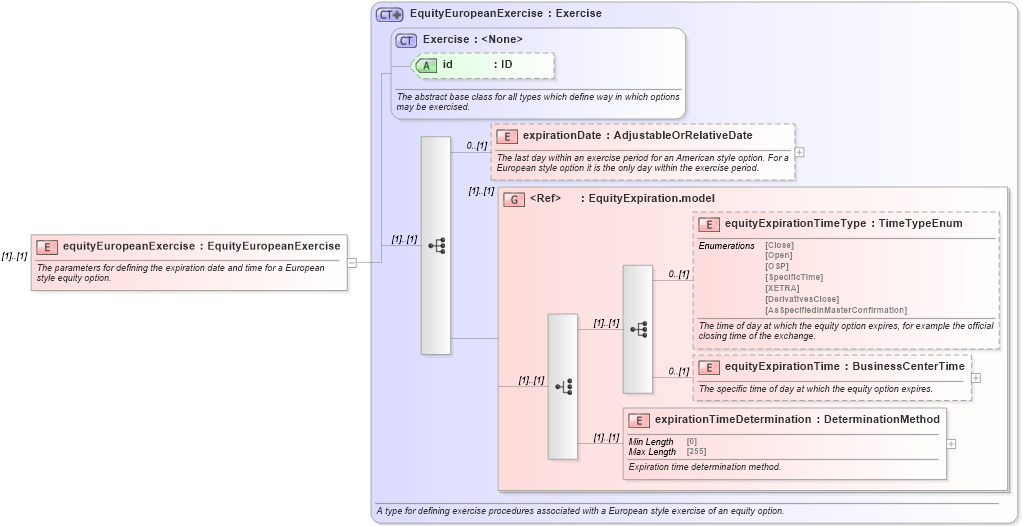

Collapse XSD Schema Diagram:
Drilldown into expirationTimeDetermination in schema fpml-eqd-5-10_xsd2 Drilldown into equityExpirationTime in schema fpml-eqd-5-10_xsd2 Drilldown into equityExpirationTimeType in schema fpml-eqd-5-10_xsd2 Drilldown into EquityExpiration.model in schema fpml-eqd-5-10_xsd2 Drilldown into expirationDate in schema fpml-eqd-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Exercise in schema fpml-shared-5-10_xsd4 Drilldown into EquityEuropeanExercise in schema fpml-eqd-5-10_xsd2XSD Diagram of equityEuropeanExercise in schema fpml-eqd-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equityEuropeanExercise" type="EquityEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the expiration date and time for a European style equity option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expirationDate nsE:expirationDate 0 (1)
equityExpirationTimeType nsE:equityExpirationTimeType 0 (1)
equityExpirationTime nsE:equityExpirationTime 0 (1)
expirationTimeDetermination nsE:expirationTimeDetermination (1) (1)
<xs:group> nsE:EquityExpiration.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
