Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquityStrike
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-eq-shared-5-10.xsd
Abstract
Documentation:
A type for defining the strike price for an equity option. The strike price is either: (i) in respect of an index option transaction, the level of the relevant index specified or otherwise determined in the transaction; or (ii) in respect of a share option transaction, the price per share specified or otherwise determined in the transaction. This can be expressed either as a percentage of notional amount or as an absolute value.

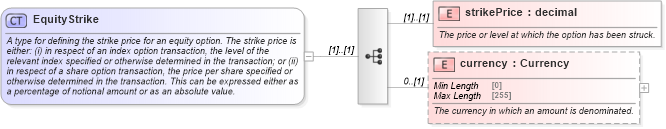

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-eq-shared-5-10_xsd3 Drilldown into strikePrice in schema fpml-eq-shared-5-10_xsd3XSD Diagram of EquityStrike in schema fpml-eq-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquityStrike">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining the strike price for an equity option. The strike price is either: (i) in respect of an index option transaction, the level of the relevant index specified or otherwise determined in the transaction; or (ii) in respect of a share option transaction, the price per share specified or otherwise determined in the transaction. This can be expressed either as a percentage of notional amount or as an absolute value.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="strikePrice" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The price or level at which the option has been struck.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="currency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The currency in which an amount is denominated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
strikePrice nsF:strikePrice (1) (1)
currency nsF:currency 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:GenericOptionStrikensF:strike,
