Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ReturnSwapBase
Containing Schema: fpml-return-swaps-5-10.xsd
Abstract
Documentation:
A type for defining Equity Swap Transaction Supplement

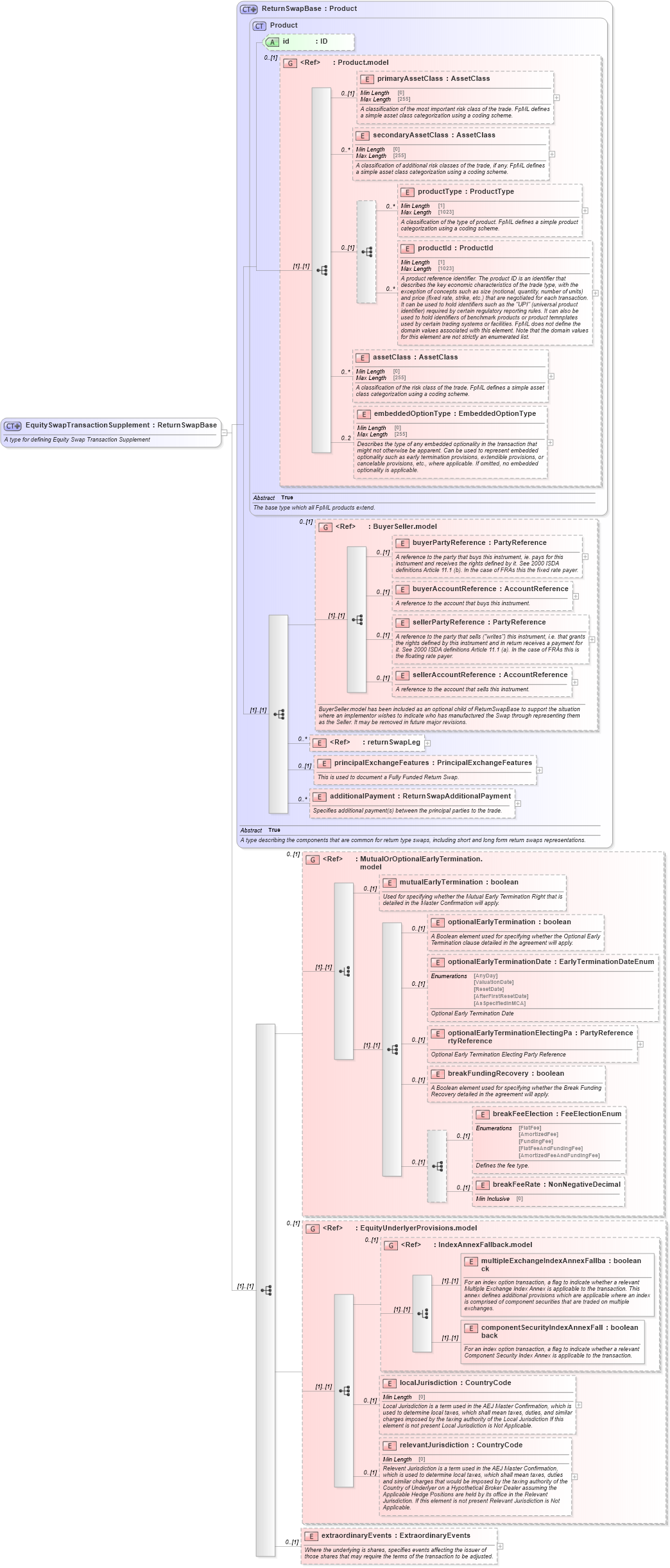

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-return-swaps-5-10_xsd2 Drilldown into relevantJurisdiction in schema fpml-eq-shared-5-10_xsd2 Drilldown into localJurisdiction in schema fpml-eq-shared-5-10_xsd2 Drilldown into componentSecurityIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd2 Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd2 Drilldown into IndexAnnexFallback.model in schema fpml-eq-shared-5-10_xsd2 Drilldown into EquityUnderlyerProvisions.model in schema fpml-eq-shared-5-10_xsd2 Drilldown into breakFeeRate in schema fpml-eq-shared-5-10_xsd2 Drilldown into breakFeeElection in schema fpml-eq-shared-5-10_xsd2 Drilldown into breakFundingRecovery in schema fpml-eq-shared-5-10_xsd2 Drilldown into optionalEarlyTerminationElectingPartyReference in schema fpml-eq-shared-5-10_xsd2 Drilldown into optionalEarlyTerminationDate in schema fpml-eq-shared-5-10_xsd2 Drilldown into optionalEarlyTermination in schema fpml-eq-shared-5-10_xsd2 Drilldown into mutualEarlyTermination in schema fpml-eq-shared-5-10_xsd2 Drilldown into MutualOrOptionalEarlyTermination.model in schema fpml-eq-shared-5-10_xsd2 Drilldown into additionalPayment in schema fpml-eq-shared-5-10_xsd2 Drilldown into principalExchangeFeatures in schema fpml-eq-shared-5-10_xsd2 Drilldown into returnSwapLeg in schema fpml-eq-shared-5-10_xsd2 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd4 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd4 Drilldown into assetClass in schema fpml-shared-5-10_xsd4 Drilldown into productId in schema fpml-shared-5-10_xsd4 Drilldown into productType in schema fpml-shared-5-10_xsd4 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into Product.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Product in schema fpml-shared-5-10_xsd4 Drilldown into ReturnSwapBase in schema fpml-eq-shared-5-10_xsd2XSD Diagram of EquitySwapTransactionSupplement in schema fpml-return-swaps-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquitySwapTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining Equity Swap Transaction Supplement</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ReturnSwapBase">
            <xsd:sequence>
                <xsd:group ref="MutualOrOptionalEarlyTermination.model" minOccurs="0" />
                <xsd:group ref="EquityUnderlyerProvisions.model" minOccurs="0">
                </xsd:group>
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsE:primaryAssetClass 0 (1)
secondaryAssetClass nsE:secondaryAssetClass 0 unbounded
productType nsE:productType 0 unbounded
productId nsE:productId 0 unbounded
assetClass nsE:assetClass 0 unbounded
embeddedOptionType nsE:embeddedOptionType 0 2
buyerPartyReference nsE:buyerPartyReference 0 (1)
buyerAccountReference nsE:buyerAccountReference 0 (1)
sellerPartyReference nsE:sellerPartyReference 0 (1)
sellerAccountReference nsE:sellerAccountReference 0 (1)
returnSwapLeg nsE:returnSwapLeg 0 unbounded
principalExchangeFeatures nsE:principalExchangeFeatures 0 (1)
additionalPayment nsE:additionalPayment 0 unbounded
mutualEarlyTermination nsE:mutualEarlyTermination 0 (1)
optionalEarlyTermination nsE:optionalEarlyTermination 0 (1)
optionalEarlyTerminationDate nsE:optionalEarlyTerminationDate 0 (1)
optionalEarlyTerminationElectingPartyReference nsE:optionalEarlyTerminationElectingPartyReference 0 (1)
breakFundingRecovery nsE:breakFundingRecovery 0 (1)
breakFeeElection nsE:breakFeeElection 0 (1)
breakFeeRate nsE:breakFeeRate 0 (1)
multipleExchangeIndexAnnexFallback nsE:multipleExchangeIndexAnnexFallback (1) (1)
componentSecurityIndexAnnexFallback nsE:componentSecurityIndexAnnexFallback (1) (1)
localJurisdiction nsE:localJurisdiction 0 (1)
relevantJurisdiction nsE:relevantJurisdiction 0 (1)
extraordinaryEvents nsE:extraordinaryEvents 0 (1)
<xs:group> nsE:BuyerSeller.model 0 (1)
<xs:group> nsE:MutualOrOptionalEarlyTermination.model 0 (1)
<xs:group> nsE:EquityUnderlyerProvisions.model 0 (1)
<xs:group> nsE:IndexAnnexFallback.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:equitySwapTransactionSupplement
