Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: europeanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxEuropeanExercise
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the exercise period for an European style option.

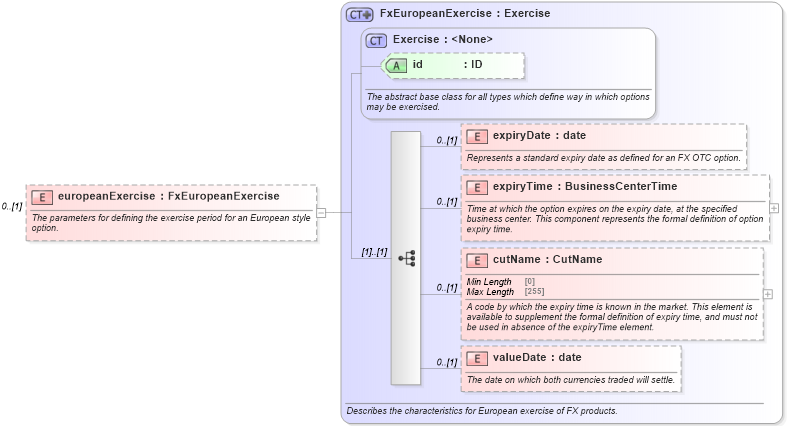

Collapse XSD Schema Diagram:
Drilldown into valueDate in schema fpml-fx-5-10_xsd3 Drilldown into cutName in schema fpml-fx-5-10_xsd3 Drilldown into expiryTime in schema fpml-fx-5-10_xsd3 Drilldown into expiryDate in schema fpml-fx-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Exercise in schema fpml-shared-5-10_xsd4 Drilldown into FxEuropeanExercise in schema fpml-fx-5-10_xsd3XSD Diagram of europeanExercise in schema fpml-fx-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="europeanExercise" type="FxEuropeanExercise" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the exercise period for an European style option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expiryDate nsE:expiryDate 0 (1)
expiryTime nsE:expiryTime 0 (1)
cutName nsE:cutName 0 (1)
valueDate nsE:valueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
