Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: europeanExercise
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:CommodityPhysicalEuropeanExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining the expiration date(s) and time(s) for a European style option.

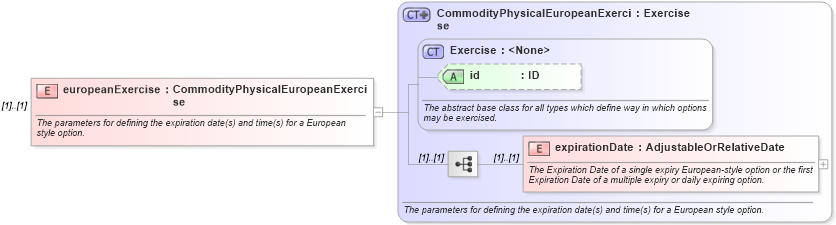

Collapse XSD Schema Diagram:
Drilldown into expirationDate in schema fpml-com-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Exercise in schema fpml-shared-5-10_xsd5 Drilldown into CommodityPhysicalEuropeanExercise in schema fpml-com-5-10_xsd3XSD Diagram of europeanExercise in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="europeanExercise" type="CommodityPhysicalEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining the expiration date(s) and time(s) for a European style option.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expirationDate nsF:expirationDate (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
