Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: europeanExercise
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxEuropeanExercise
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The parameters for exercising the FxStraddle (underlying options), the underlying options are always European style options.

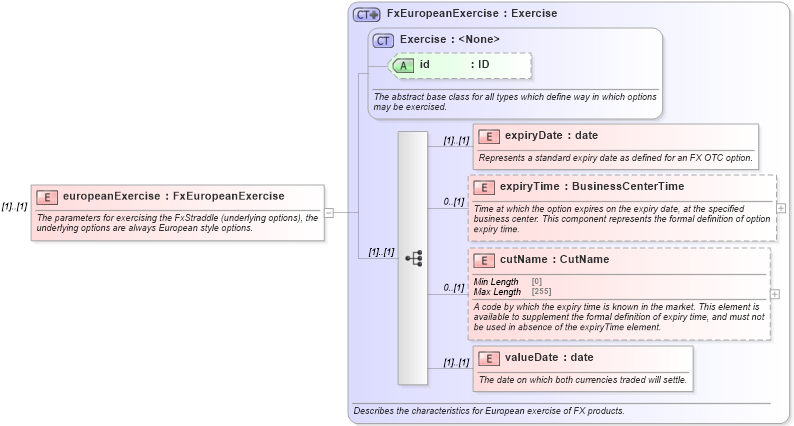

Collapse XSD Schema Diagram:
Drilldown into valueDate in schema fpml-fx-5-10_xsd Drilldown into cutName in schema fpml-fx-5-10_xsd Drilldown into expiryTime in schema fpml-fx-5-10_xsd Drilldown into expiryDate in schema fpml-fx-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Exercise in schema fpml-shared-5-10_xsd Drilldown into FxEuropeanExercise in schema fpml-fx-5-10_xsdXSD Diagram of europeanExercise in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="europeanExercise" type="FxEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for exercising the FxStraddle (underlying options), the underlying options are always European style options.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expiryDate nsA:expiryDate (1) (1)
expiryTime nsA:expiryTime 0 (1)
cutName nsA:cutName 0 (1)
valueDate nsA:valueDate (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
