Definition Type: Group
Name: EventsOrInfo.model
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-confirmation-processes-5-10.xsd
Documentation:
Defines a model group that allows either details of an event or information about a trade to be provided. Typically this will be used in a response to a request.

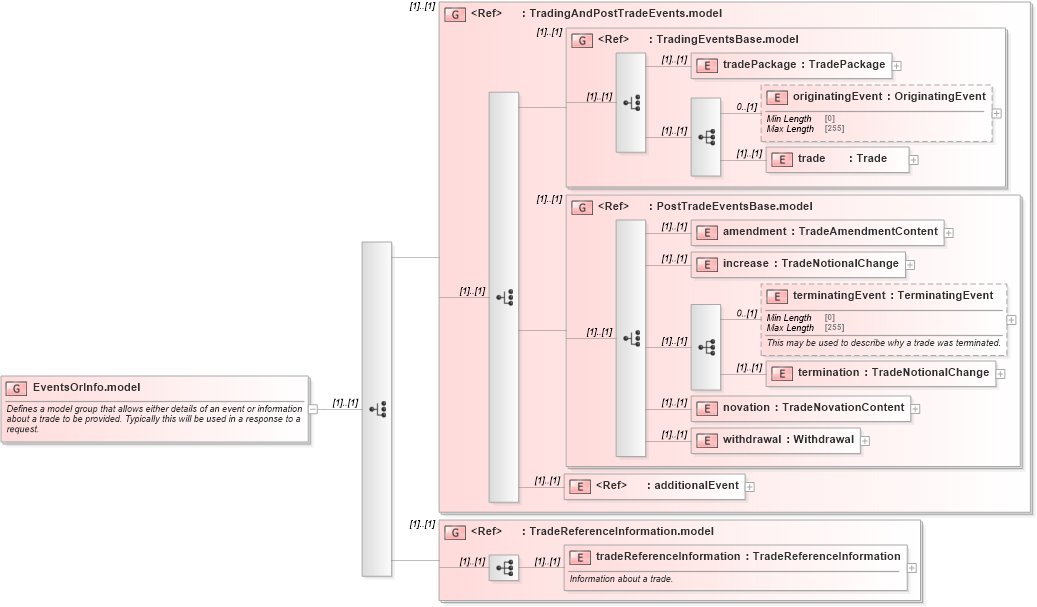

Collapse XSD Schema Diagram:
Drilldown into tradeReferenceInformation in schema fpml-business-events-5-10_xsd Drilldown into TradeReferenceInformation.model in schema fpml-business-events-5-10_xsd Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd Drilldown into withdrawal in schema fpml-business-events-5-10_xsd Drilldown into novation in schema fpml-business-events-5-10_xsd Drilldown into termination in schema fpml-business-events-5-10_xsd Drilldown into terminatingEvent in schema fpml-business-events-5-10_xsd Drilldown into increase in schema fpml-business-events-5-10_xsd Drilldown into amendment in schema fpml-business-events-5-10_xsd Drilldown into PostTradeEventsBase.model in schema fpml-business-events-5-10_xsd Drilldown into trade in schema fpml-business-events-5-10_xsd Drilldown into originatingEvent in schema fpml-business-events-5-10_xsd Drilldown into tradePackage in schema fpml-business-events-5-10_xsd Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd Drilldown into TradingAndPostTradeEvents.model in schema fpml-business-events-5-10_xsdXSD Diagram of EventsOrInfo.model in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="EventsOrInfo.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a model group that allows either details of an event or information about a trade to be provided. Typically this will be used in a response to a request.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="TradingAndPostTradeEvents.model" />
        <xsd:group ref="TradeReferenceInformation.model" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradePackage nsA:tradePackage (1) (1)
originatingEvent nsA:originatingEvent 0 (1)
trade nsA:trade (1) (1)
amendment nsA:amendment (1) (1)
increase nsA:increase (1) (1)
terminatingEvent nsA:terminatingEvent 0 (1)
termination nsA:termination (1) (1)
novation nsA:novation (1) (1)
withdrawal nsA:withdrawal (1) (1)
additionalEvent nsA:additionalEvent (1) (1)
tradeReferenceInformation nsA:tradeReferenceInformation (1) (1)
<xs:group> nsA:TradingAndPostTradeEvents.model (1) (1)
<xs:group> nsA:TradingEventsBase.model (1) (1)
<xs:group> nsA:PostTradeEventsBase.model (1) (1)
<xs:group> nsA:TradeReferenceInformation.model (1) (1)
