Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: excludedReferenceEntity
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:LegalEntity
Containing Schema: fpml-cd-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Excluded reference entity.

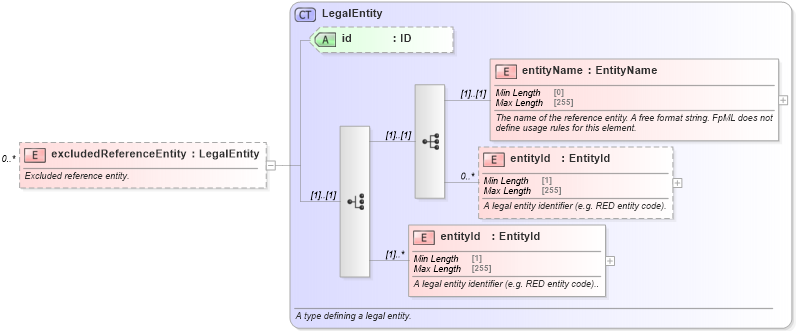

Collapse XSD Schema Diagram:
Drilldown into entityId in schema fpml-shared-5-10_xsd Drilldown into entityId in schema fpml-shared-5-10_xsd Drilldown into entityName in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into LegalEntity in schema fpml-shared-5-10_xsdXSD Diagram of excludedReferenceEntity in schema fpml-cd-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="excludedReferenceEntity" type="LegalEntity" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Excluded reference entity.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
entityName nsA:entityName (1) (1)
entityId nsA:entityId 0 unbounded
entityId nsA:entityId (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
