Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityExercise
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining how the commodity option can be exercised and how it is settled.

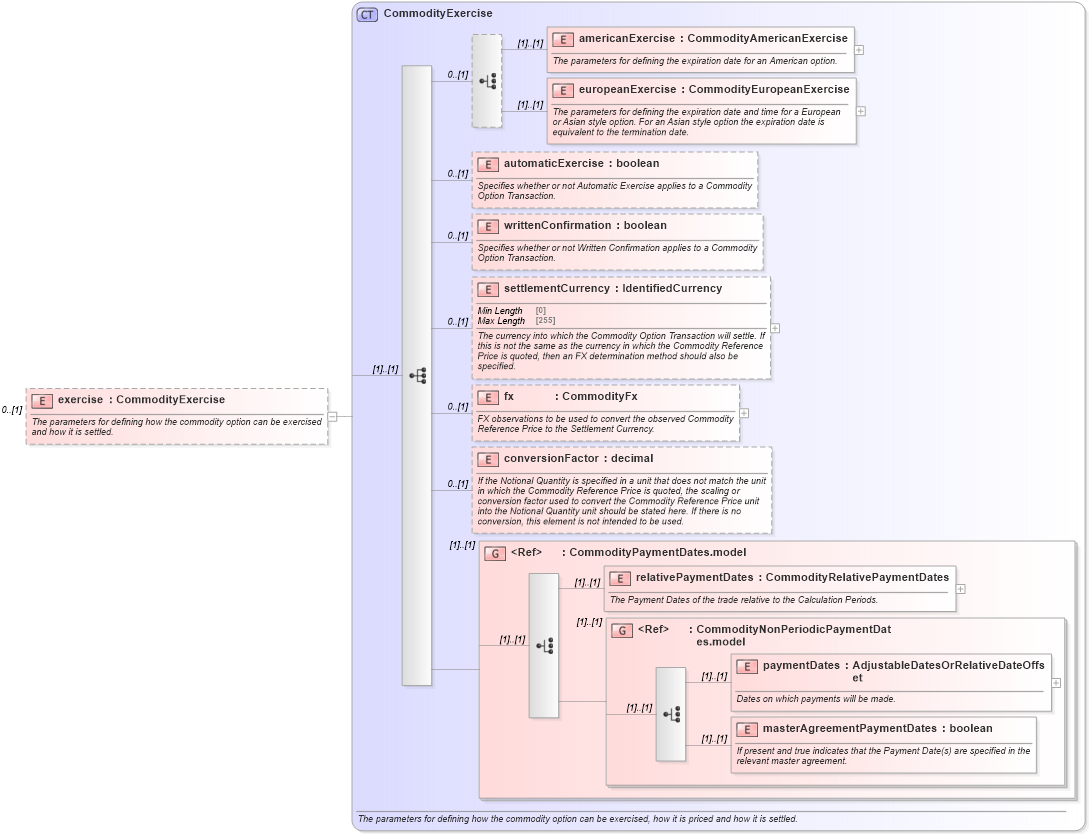

Collapse XSD Schema Diagram:
Drilldown into masterAgreementPaymentDates in schema fpml-com-5-10_xsd1 Drilldown into paymentDates in schema fpml-com-5-10_xsd1 Drilldown into CommodityNonPeriodicPaymentDates.model in schema fpml-com-5-10_xsd1 Drilldown into relativePaymentDates in schema fpml-com-5-10_xsd1 Drilldown into CommodityPaymentDates.model in schema fpml-com-5-10_xsd1 Drilldown into conversionFactor in schema fpml-com-5-10_xsd1 Drilldown into fx in schema fpml-com-5-10_xsd1 Drilldown into settlementCurrency in schema fpml-com-5-10_xsd1 Drilldown into writtenConfirmation in schema fpml-com-5-10_xsd1 Drilldown into automaticExercise in schema fpml-com-5-10_xsd1 Drilldown into europeanExercise in schema fpml-com-5-10_xsd1 Drilldown into americanExercise in schema fpml-com-5-10_xsd1 Drilldown into CommodityExercise in schema fpml-com-5-10_xsd1XSD Diagram of exercise in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exercise" type="CommodityExercise" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining how the commodity option can be exercised and how it is settled.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
americanExercise nsD:americanExercise (1) (1)
europeanExercise nsD:europeanExercise (1) (1)
automaticExercise nsD:automaticExercise 0 (1)
writtenConfirmation nsD:writtenConfirmation 0 (1)
settlementCurrency nsD:settlementCurrency 0 (1)
fx nsD:fx 0 (1)
conversionFactor nsD:conversionFactor 0 (1)
relativePaymentDates nsD:relativePaymentDates (1) (1)
paymentDates nsD:paymentDates (1) (1)
masterAgreementPaymentDates nsD:masterAgreementPaymentDates (1) (1)
<xs:group> nsD:CommodityPaymentDates.model (1) (1)
<xs:group> nsD:CommodityNonPeriodicPaymentDates.model (1) (1)
Collapse Derivation Tree:
