Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exerciseFrequency
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Frequency
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The exercise frequency for the strip.
Collapse XSD Schema Diagram:

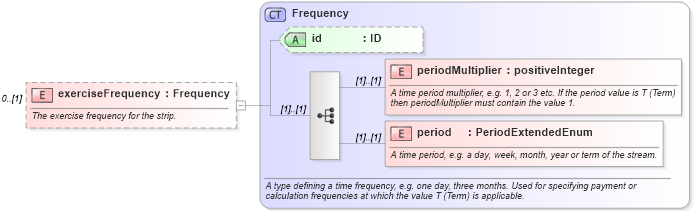

Drilldown into period in schema fpml-shared-5-10_xsd Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Frequency in schema fpml-shared-5-10_xsdXSD Diagram of exerciseFrequency in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exerciseFrequency" type="Frequency" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The exercise frequency for the strip.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsA:periodMultiplier (1) (1)
period nsA:period (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
