Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: expirySchedule
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxExpirySchedule
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Defines the expiry/observation schedule of the target product.

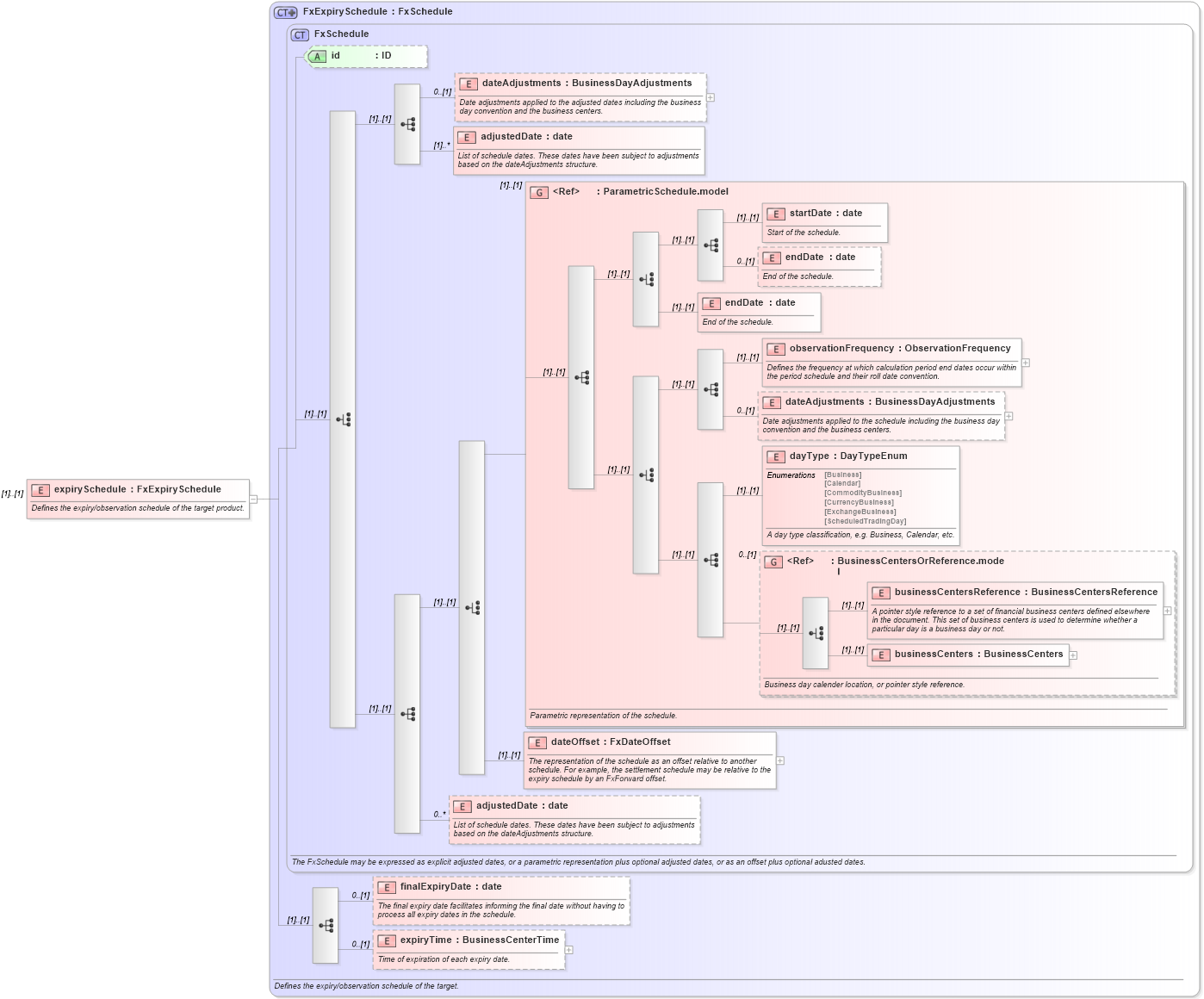

Collapse XSD Schema Diagram:
Drilldown into expiryTime in schema fpml-fx-targets-5-10_xsd Drilldown into finalExpiryDate in schema fpml-fx-targets-5-10_xsd Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd Drilldown into dateOffset in schema fpml-fx-targets-5-10_xsd Drilldown into businessCenters in schema fpml-shared-5-10_xsd Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd Drilldown into dayType in schema fpml-fx-targets-5-10_xsd Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd Drilldown into observationFrequency in schema fpml-fx-targets-5-10_xsd Drilldown into endDate in schema fpml-fx-targets-5-10_xsd Drilldown into endDate in schema fpml-fx-targets-5-10_xsd Drilldown into startDate in schema fpml-fx-targets-5-10_xsd Drilldown into ParametricSchedule.model in schema fpml-fx-targets-5-10_xsd Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd Drilldown into id in schema fpml-fx-targets-5-10_xsd Drilldown into FxSchedule in schema fpml-fx-targets-5-10_xsd Drilldown into FxExpirySchedule in schema fpml-fx-targets-5-10_xsdXSD Diagram of expirySchedule in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="expirySchedule" type="FxExpirySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the expiry/observation schedule of the target product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dateAdjustments nsA:dateAdjustments 0 (1)
adjustedDate nsA:adjustedDate (1) unbounded
startDate nsA:startDate (1) (1)
endDate nsA:endDate 0 (1)
endDate nsA:endDate (1) (1)
observationFrequency nsA:observationFrequency (1) (1)
dateAdjustments nsA:dateAdjustments 0 (1)
dayType nsA:dayType (1) (1)
businessCentersReference nsA:businessCentersReference (1) (1)
businessCenters nsA:businessCenters (1) (1)
dateOffset nsA:dateOffset (1) (1)
adjustedDate nsA:adjustedDate 0 unbounded
finalExpiryDate nsA:finalExpiryDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
<xs:group> nsA:ParametricSchedule.model (1) (1)
<xs:group> nsA:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
