Definition Type: Group
Name: FacilityRoles.model
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-loan-5-10.xsd
Documentation:
A model that describes the various roles played by parties within a given facility.

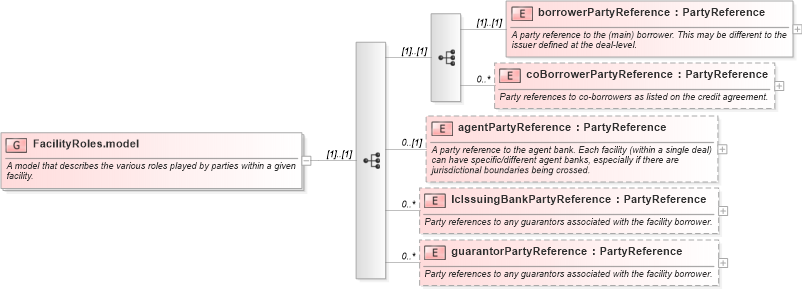

Collapse XSD Schema Diagram:
Drilldown into guarantorPartyReference in schema fpml-loan-5-10_xsd Drilldown into lcIssuingBankPartyReference in schema fpml-loan-5-10_xsd Drilldown into agentPartyReference in schema fpml-loan-5-10_xsd Drilldown into coBorrowerPartyReference in schema fpml-loan-5-10_xsd Drilldown into borrowerPartyReference in schema fpml-loan-5-10_xsdXSD Diagram of FacilityRoles.model in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="FacilityRoles.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A model that describes the various roles played by parties within a given facility.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element name="borrowerPartyReference" type="PartyReference">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">A party reference to the (main) borrower. This may be different to the issuer defined at the deal-level.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="coBorrowerPartyReference" type="PartyReference" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Party references to co-borrowers as listed on the credit agreement.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
        <xsd:element name="agentPartyReference" type="PartyReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A party reference to the agent bank. Each facility (within a single deal) can have specific/different agent banks, especially if there are jurisdictional boundaries being crossed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lcIssuingBankPartyReference" type="PartyReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Party references to any guarantors associated with the facility borrower.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="guarantorPartyReference" type="PartyReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Party references to any guarantors associated with the facility borrower.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
borrowerPartyReference nsA:borrowerPartyReference (1) (1)
coBorrowerPartyReference nsA:coBorrowerPartyReference 0 unbounded
agentPartyReference nsA:agentPartyReference 0 (1)
lcIssuingBankPartyReference nsA:lcIssuingBankPartyReference 0 unbounded
guarantorPartyReference nsA:guarantorPartyReference 0 unbounded
