Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: feature
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:OptionFeature
Containing Schema: fpml-option-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
An Option feature such as quanto, asian, barrier, knock.
Collapse XSD Schema Diagram:

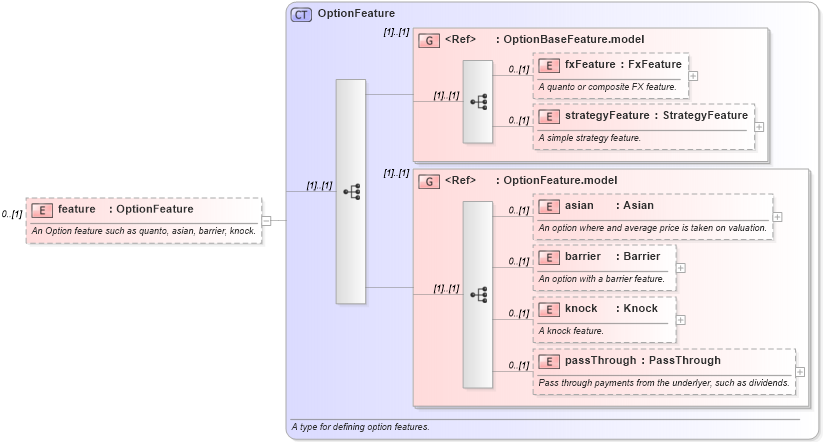

Drilldown into passThrough in schema fpml-option-shared-5-10_xsd Drilldown into knock in schema fpml-option-shared-5-10_xsd Drilldown into barrier in schema fpml-option-shared-5-10_xsd Drilldown into asian in schema fpml-option-shared-5-10_xsd Drilldown into OptionFeature.model in schema fpml-option-shared-5-10_xsd Drilldown into strategyFeature in schema fpml-option-shared-5-10_xsd Drilldown into fxFeature in schema fpml-option-shared-5-10_xsd Drilldown into OptionBaseFeature.model in schema fpml-option-shared-5-10_xsd Drilldown into OptionFeature in schema fpml-option-shared-5-10_xsdXSD Diagram of feature in schema fpml-option-shared-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="feature" type="OptionFeature" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An Option feature such as quanto, asian, barrier, knock.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fxFeature nsA:fxFeature 0 (1)
strategyFeature nsA:strategyFeature 0 (1)
asian nsA:asian 0 (1)
barrier nsA:barrier 0 (1)
knock nsA:knock 0 (1)
passThrough nsA:passThrough 0 (1)
<xs:group> nsA:OptionBaseFeature.model (1) (1)
<xs:group> nsA:OptionFeature.model (1) (1)
Collapse Derivation Tree:
