Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: feature
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:OptionFeature
Containing Schema: fpml-option-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
An Option feature such as quanto, asian, barrier, knock.

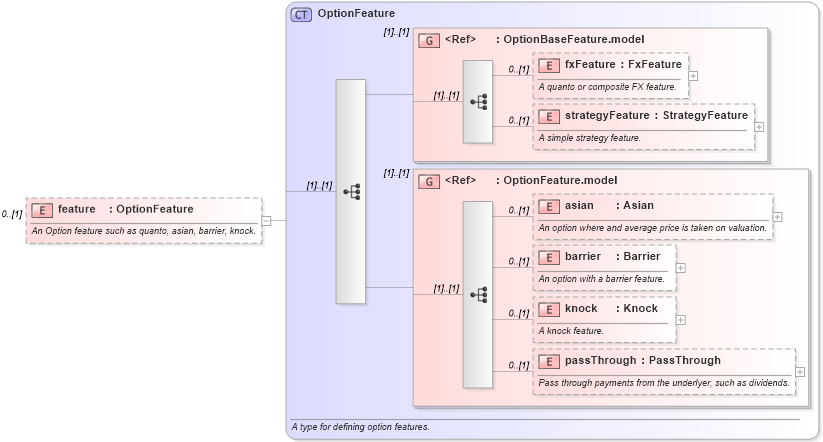

Collapse XSD Schema Diagram:
Drilldown into passThrough in schema fpml-option-shared-5-10_xsd2 Drilldown into knock in schema fpml-option-shared-5-10_xsd2 Drilldown into barrier in schema fpml-option-shared-5-10_xsd2 Drilldown into asian in schema fpml-option-shared-5-10_xsd2 Drilldown into OptionFeature.model in schema fpml-option-shared-5-10_xsd2 Drilldown into strategyFeature in schema fpml-option-shared-5-10_xsd2 Drilldown into fxFeature in schema fpml-option-shared-5-10_xsd2 Drilldown into OptionBaseFeature.model in schema fpml-option-shared-5-10_xsd2 Drilldown into OptionFeature in schema fpml-option-shared-5-10_xsd2XSD Diagram of feature in schema fpml-option-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="feature" type="OptionFeature" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An Option feature such as quanto, asian, barrier, knock.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fxFeature nsD:fxFeature 0 (1)
strategyFeature nsD:strategyFeature 0 (1)
asian nsD:asian 0 (1)
barrier nsD:barrier 0 (1)
knock nsD:knock 0 (1)
passThrough nsD:passThrough 0 (1)
<xs:group> nsD:OptionBaseFeature.model (1) (1)
<xs:group> nsD:OptionFeature.model (1) (1)
Collapse Derivation Tree:
