Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: feeAmountSchedule
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:AmountSchedule
Containing Schema: fpml-shared-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The exercise fee amount schedule. The fees are expressed as currency amounts. The currency of the fee is assumed to be that of the notional schedule referenced.

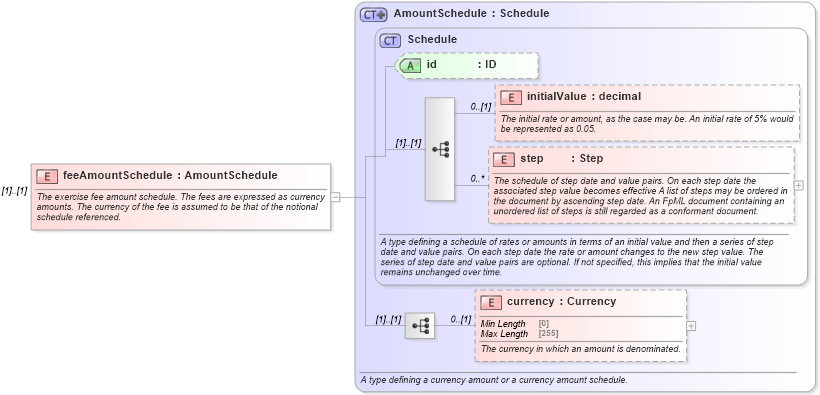

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd2 Drilldown into step in schema fpml-shared-5-10_xsd2 Drilldown into initialValue in schema fpml-shared-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd2 Drilldown into Schedule in schema fpml-shared-5-10_xsd2 Drilldown into AmountSchedule in schema fpml-shared-5-10_xsd2XSD Diagram of feeAmountSchedule in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="feeAmountSchedule" type="AmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The exercise fee amount schedule. The fees are expressed as currency amounts. The currency of the fee is assumed to be that of the notional schedule referenced.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsC:initialValue 0 (1)
step nsC:step 0 unbounded
currency nsC:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
