Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: feeLeg
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FeeLeg
Containing Schema: fpml-cd-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
This element contains all the terms relevant to defining the fixed amounts/payments per the applicable ISDA definitions.

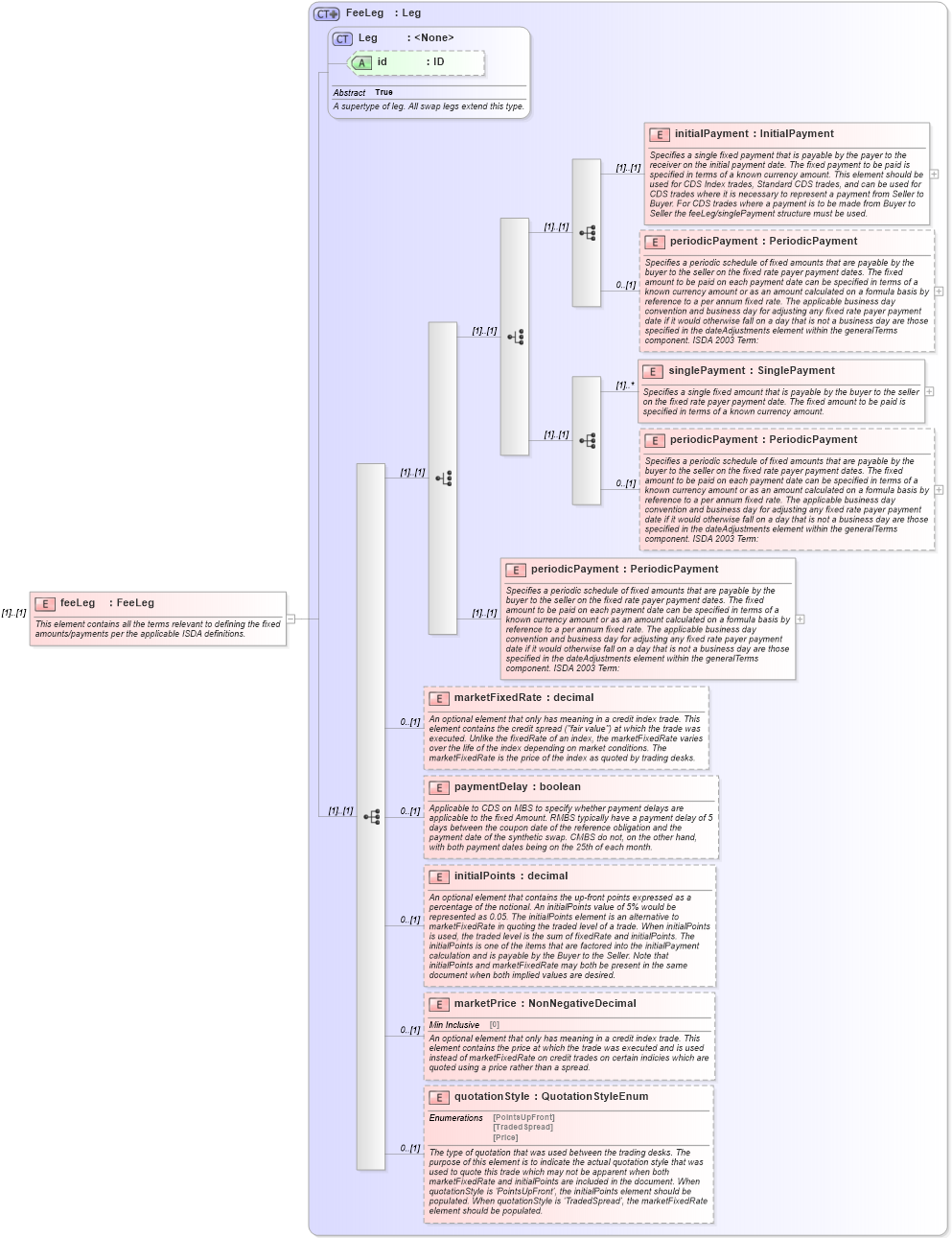

Collapse XSD Schema Diagram:
Drilldown into quotationStyle in schema fpml-cd-5-10_xsd2 Drilldown into marketPrice in schema fpml-cd-5-10_xsd2 Drilldown into initialPoints in schema fpml-cd-5-10_xsd2 Drilldown into paymentDelay in schema fpml-cd-5-10_xsd2 Drilldown into marketFixedRate in schema fpml-cd-5-10_xsd2 Drilldown into periodicPayment in schema fpml-cd-5-10_xsd2 Drilldown into periodicPayment in schema fpml-cd-5-10_xsd2 Drilldown into singlePayment in schema fpml-cd-5-10_xsd2 Drilldown into periodicPayment in schema fpml-cd-5-10_xsd2 Drilldown into initialPayment in schema fpml-cd-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Leg in schema fpml-shared-5-10_xsd3 Drilldown into FeeLeg in schema fpml-cd-5-10_xsd2XSD Diagram of feeLeg in schema fpml-cd-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="feeLeg" type="FeeLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This element contains all the terms relevant to defining the fixed amounts/payments per the applicable ISDA definitions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialPayment nsD:initialPayment (1) (1)
periodicPayment nsD:periodicPayment 0 (1)
singlePayment nsD:singlePayment (1) unbounded
periodicPayment nsD:periodicPayment 0 (1)
periodicPayment nsD:periodicPayment (1) (1)
marketFixedRate nsD:marketFixedRate 0 (1)
paymentDelay nsD:paymentDelay 0 (1)
initialPoints nsD:initialPoints 0 (1)
marketPrice nsD:marketPrice 0 (1)
quotationStyle nsD:quotationStyle 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
