Docs for schema item fixedPriceSchedule in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	fixedPriceSchedule
Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	nsE:CommodityFixedPriceSchedule
Containing Schema:	fpml-com-5-10.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	Allows the specification of a Fixed Price that varies over the life of the trade.

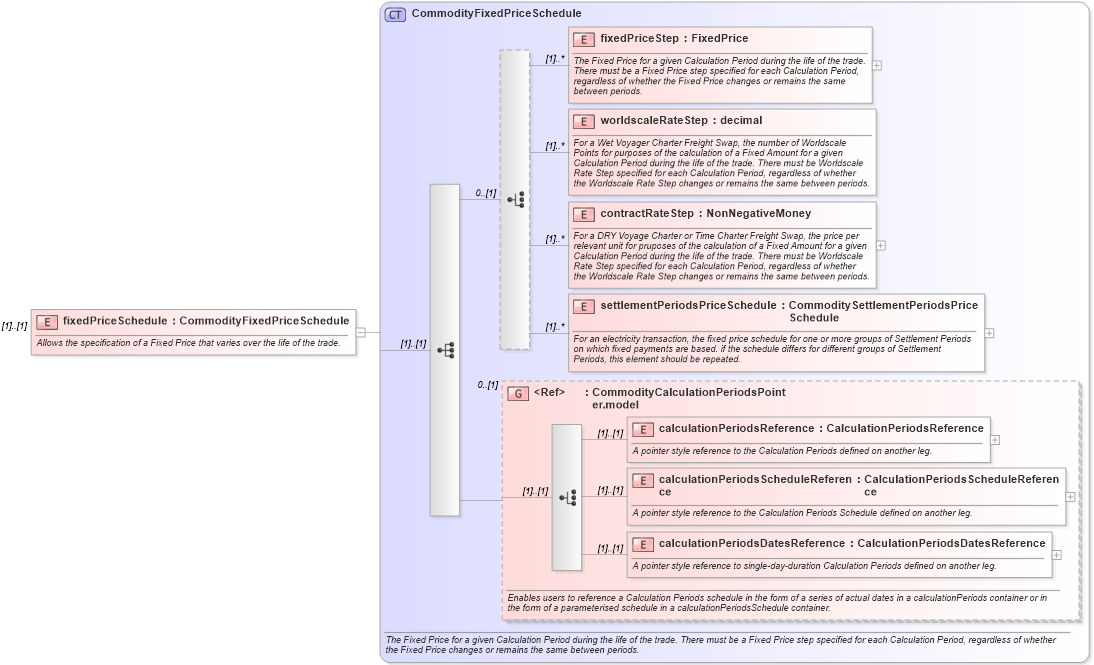

XSD Schema Diagram:

XSD Diagram of fixedPriceSchedule in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="fixedPriceSchedule" type="CommodityFixedPriceSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the specification of a Fixed Price that varies over the life of the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
fixedPriceStep	nsE:fixedPriceStep	(1)	unbounded
worldscaleRateStep	nsE:worldscaleRateStep	(1)	unbounded
contractRateStep	nsE:contractRateStep	(1)	unbounded
settlementPeriodsPriceSchedule	nsE:settlementPeriodsPriceSchedule	(1)	unbounded
calculationPeriodsReference	nsE:calculationPeriodsReference	(1)	(1)
calculationPeriodsScheduleReference	nsE:calculationPeriodsScheduleReference	(1)	(1)
calculationPeriodsDatesReference	nsE:calculationPeriodsDatesReference	(1)	(1)
<xs:group>	nsE:CommodityCalculationPeriodsPointer.model	0	(1)

Derivation Tree:
	nsE:CommodityFixedPriceSchedule *fixedPriceSchedule*
