Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fixingInformationSource
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxInformationSource
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Information source for fixing the exchange rate. It is the same for all fixing periods.

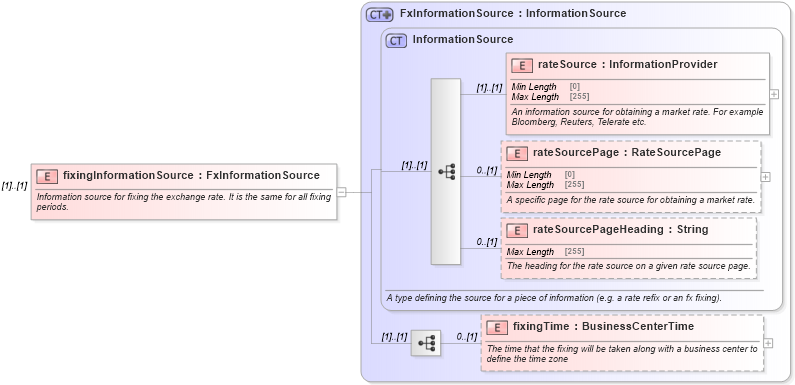

Collapse XSD Schema Diagram:
Drilldown into fixingTime in schema fpml-shared-5-10_xsd Drilldown into rateSourcePageHeading in schema fpml-shared-5-10_xsd Drilldown into rateSourcePage in schema fpml-shared-5-10_xsd Drilldown into rateSource in schema fpml-shared-5-10_xsd Drilldown into InformationSource in schema fpml-shared-5-10_xsd Drilldown into FxInformationSource in schema fpml-shared-5-10_xsdXSD Diagram of fixingInformationSource in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fixingInformationSource" type="FxInformationSource">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Information source for fixing the exchange rate. It is the same for all fixing periods.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rateSource nsA:rateSource (1) (1)
rateSourcePage nsA:rateSourcePage 0 (1)
rateSourcePageHeading nsA:rateSourcePageHeading 0 (1)
fixingTime nsA:fixingTime 0 (1)
Collapse Derivation Tree:
