Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fixingInformationSource
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:FxSpotRateSource
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Fixing Information source parameters to determine the rate observed for each good business day within the Fixing Schedule.

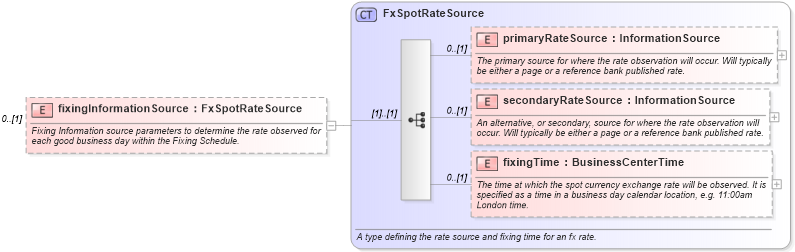

Collapse XSD Schema Diagram:
Drilldown into fixingTime in schema fpml-shared-5-10_xsd2 Drilldown into secondaryRateSource in schema fpml-shared-5-10_xsd2 Drilldown into primaryRateSource in schema fpml-shared-5-10_xsd2 Drilldown into FxSpotRateSource in schema fpml-shared-5-10_xsd2XSD Diagram of fixingInformationSource in schema fpml-fx-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fixingInformationSource" type="FxSpotRateSource" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Fixing Information source parameters to determine the rate observed for each good business day within the Fixing Schedule.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryRateSource nsC:primaryRateSource 0 (1)
secondaryRateSource nsC:secondaryRateSource 0 (1)
fixingTime nsC:fixingTime 0 (1)
Collapse Derivation Tree:
